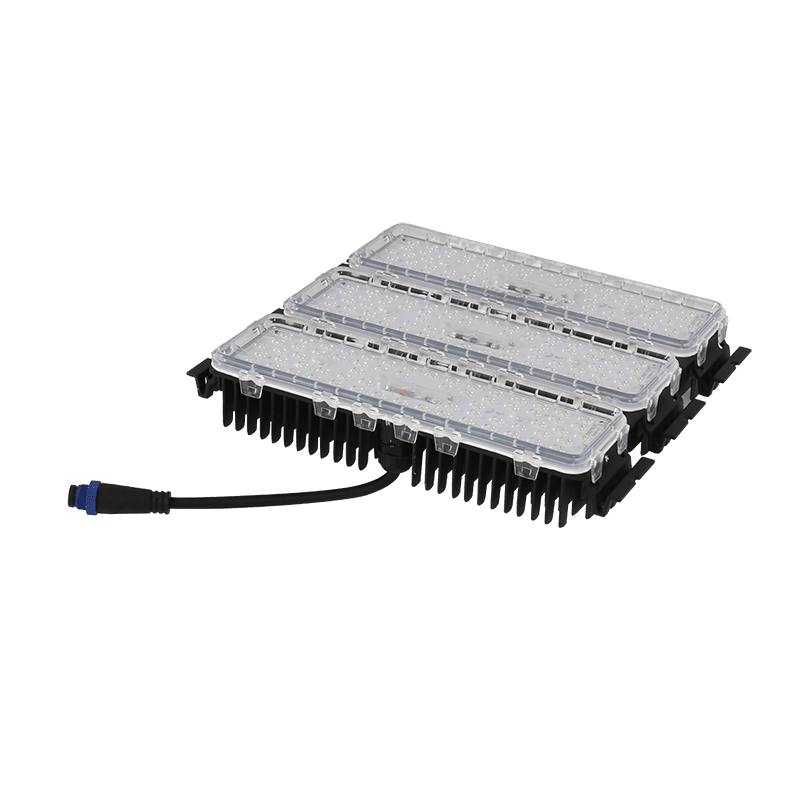

M18-D01C led module for luminaires

The wattage range of M18-D01C LED module:  120W/150W/180W
The M18-D01C  LED module with 189pcs 3030 led chips delivering high efficacy and reliability for indoor and outdoor lighting application. A variety of light distributions are available to meet the requirement of complex situations. With superior protection level IP68, M18-D01C  LED module has excellent heat dissipation structure and perfect lighting performance.
Category: Tag:

Description

Features:
  • Lumileds Luxeon 3030;
  • Super long lifetime(Lumen maintenance);
  • Multiple lighting distributions available;
  • Wide applicability for complex situations;
  • High versatility apply for all sorts of lamps retrofit.
Applications:
  • Street lighting retrofit and application;
  • Factory lighting retrofit and application;
  • Tunnel lighting retrofit and application;
  • Sports lighting retrofit and application.

Additional information

Color Temperature:

3000k, 4000k, 5000k, 5700k
Dimensions(mm)

275.2*234.6*51.5
Driving current (mA)

1050, 700, 860
IP rate:

IP68
LED Light Source

3030
Lighting Distributions

25, 40, 60, 90, lambert, Tunnel light
Luminous Efficacy(lm/w):

127, 135, 140
Output Power

120, 150, 180
