the solution for led luminaires by 3030 5050 chips led module,led driver with Inventronics, Meanwell,Moso and Sosen brands supplier optional

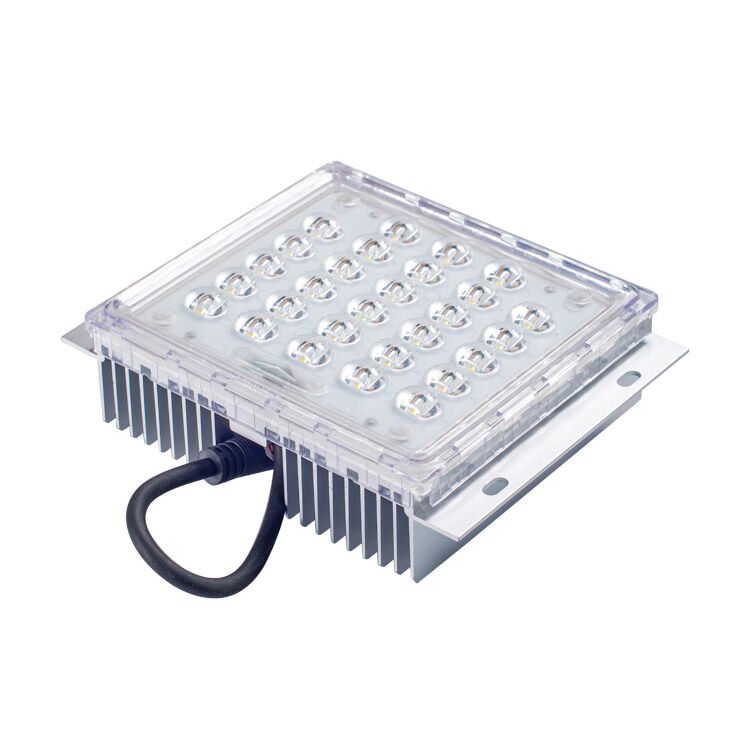

The wattage range of M9-D24 IP68 LED module :50W
M9-D24 LED Module adopts 28pcs customized CREE,OSRAM, Lumileds or Refong 5050 LED chips with super high efficiency and long life time.
Excellent protection level IP68, high heat dissipation structure and perfect lighting performance. Various light distributions meet different outdoor lighting applications.
Features Of M9-D24 LED Module:
• CREE,OSRAM, Lumileds or Refong 5050 LEDs;
• Super long lifetime(Lumen maintenance);
• Multiple lighting distributions available;
• Wide applicability for complex situations;
• High versatility apply for all sorts of lamps retrofit.
Applications Of M9-D24 LED Module:
• Street lighting retrofit and application;
• Factory lighting retrofit and application;
• Tunnel lighting retrofit and application;
• Sports lighting retrofit and application.
| Output Power | 30, 40, 50, 60 |
|---|---|
| Color Temperature: | 3000k, 4000k, 5000k, 5700k |
| Driving current (mA) | 1200, 600, 750, 900 |
| LED Light Source | 5050 |
| Luminous Efficacy(lm/w): | 150, 155, 160, 170 |
| Lighting Distributions | 70*150 |
| IP rate: | IP68 |
| Dimensions(mm) | 175*130*48 |
