Description
Discription:
-

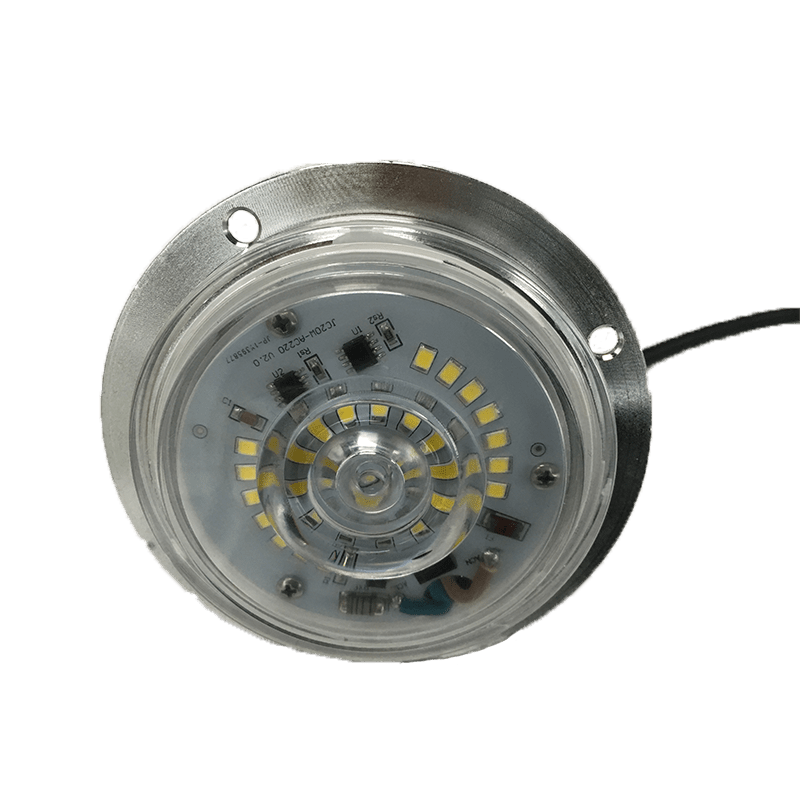

This Module uses 3030 LEDs，with high luminous efficiency,low heat,no mercury and other harmful elements,belonging to green light;
-
The client can choose lumen brightness,CRI and CCT,the maximum luminous efficiency of up to 120lm/W;
-
LED source conform LM80,the actual test ambient temperature after aging 9000h at 105℃，can maintain the luminous flux rate remained at 96%;
-
Uses high thermal conductivity aluminum plate, reducing the temperature difference between light source and radiator, improve reliability;
-
Shape fit to all fixtures, And can use M15 waterproof connector assembly is simple and convenient;
-
Moudle electrical performance parameters designed to meet AC180-240V power supply, It is easy to match the city power supply;
Features:
-
High brightness Lumileds Luxeon or Refond SMD 3030 LEDs; -
DOB driverless design, AC 220V input; -
IP67 rating, waterproof for outdoor lighting; -
Small round delicate size to fit different types of housing; -
Super long lifetime (lumen maintenance); -
Full range of power selections for LED street light; -
Widely used in street lighting, landscape lighitng, retrofit projects etc.
Application:
- Street lighting retrofit and application;
- Garden lighting retrofit and application;
- Tunnel lighting retrofit and application;
- Warehouse Lighting retrofit and application
