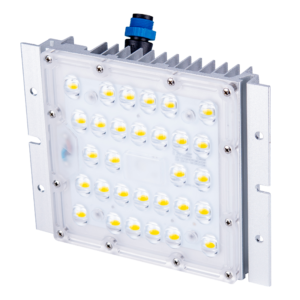

M10-D22 LED Module

Description

Discreption:

• Moudle uses 5050 LEDs，with high luminous efficiency,low heat,no mercury and other harmful elements,belonging to green light.

• The client can choose lumen brightness,CRI and CCT,the maximum luminous efficiency of up to 160lm/W;

• LED source conform LM80,the actual test ambient temperature after aging 9000h at 105℃，can maintain the luminous flux rate remained at 96%;

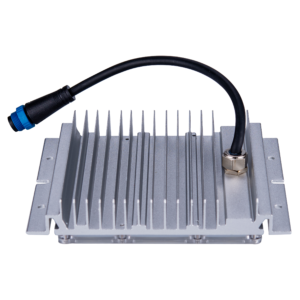

• Uses high thermal conductivity aluminum plate, reducing the temperature difference between light source and radiator, improve reliability;

• Using convection radiator, led temperatureis less than 75℃;

• IP 67 shell,can pass red ink test;

• Shape meets CSA 016-2014 design,fit to all fixtures, And M15 waterproof connector assembly is simple and convenient;

• Moudle electrical performance parameters designed to meet the mainstream market LED power supply,It is easy to buy on the market to match the power supply;

Features:

• Uniquie patented IP68 LED light engines;

• 40pcs Lumileds led 5050;

• Super long lifetime(lumen maintenance);

• Ultra-high lighting efficiency, low power consumption;

• Multiple lighting distribution available;

• Wide applicability for Complex situations.
