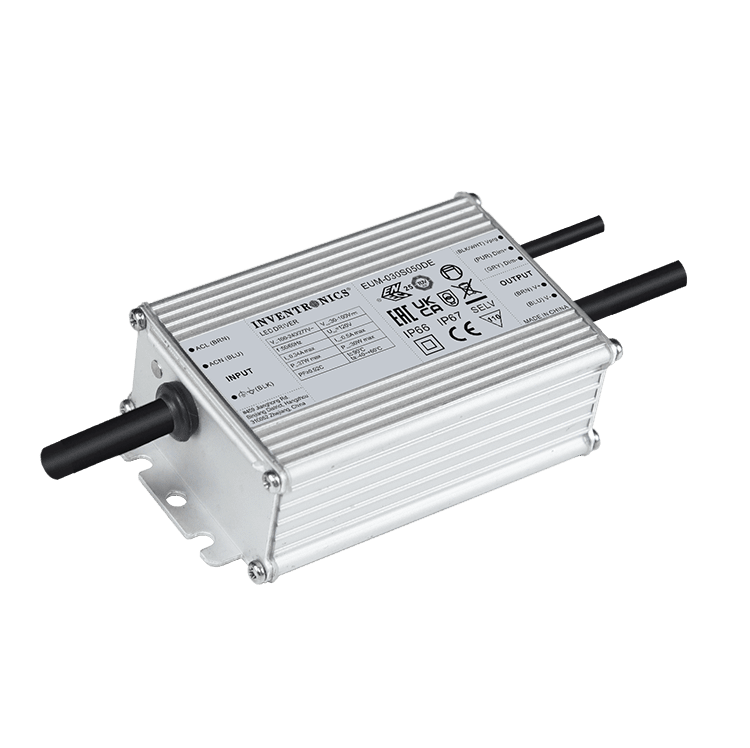

EUM-030SxxxDE

The EUM-030SxxxDE series is a 30W, constant-current, programmable and IP66/IP67 rated LED driver that operates from 90-305Vac input with excellent power factor. It is created for many lighting applications including low bay, tunnel and street, etc. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.
Category: Tag:

Description

Product Features:

  • Programmable, Without the need of Powering on the Driver
  • Isolated Dimming Controls1-5V, 1-10V, 10V PWM, Multiple Timers
  • Built-in Surge Protection: 4kV DM, 6kV CM
  • Output Lumen Compensation
  • Suitable for Luminaires with Protection Class I and II
  • SELV Output Models Available
  • IP66 and IP67 Rated
  • 5 years warranty

Detail models with packing information:

Model Adjustable
Output Current
Range		 Full-Power
Current
Range(1)		 Default
Output
Current		 Input voltage Max. Output power Output vol. Effi. QTY per carton
(pcs)		 carton size
(cm)		 GW per carton
(kg)
EUM-030S050DE 30-500mA 300-500mA 350mA 90~305 Vac/127~300 Vdc 30w 30~100Vdc 88.00% 40 54*36*31 22
EUM-030S105DE 55-1050mA 550-1050mA 700mA 90~305 Vac/127~300 Vdc 30w 17~54Vdc 87.00%

Notes: (1) Output current range with constant power at 30W
(2) Certified input voltage range: 100-240Vac.
(3) Measured at 100% load and 220Vac input (see below “General Specifications” for details).
(4) SELV output.
