Description

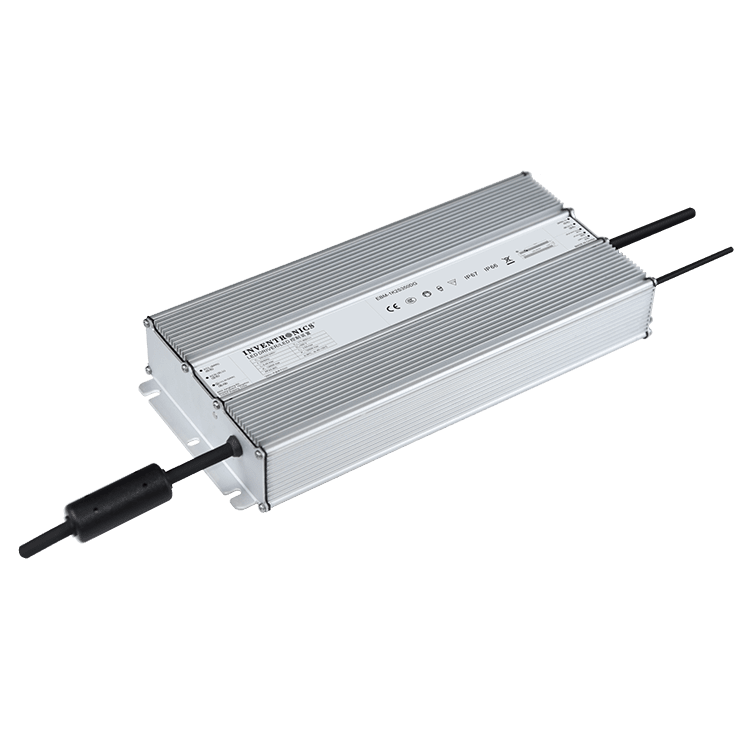

The EBM-1K2SxxxDG series is a 1200W, constant-current, programmable and IP66/IP67 rated LED driver that operates from 176-305 Vac input with excellent power factor. Created for many lighting applications including high mast, sports, UV-LED, aquaculture and horticulture etc., The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature. Feature: • Ultra High Efficiency (Up to 96.0%) • Compact Metal Case with Excellent Thermal Performance • Full Power at Wide Output Current Range (Constant Power) • Adjustable Output Current (AOC) with Programmability • Isolated 1-10V/10V PWM/3-Timer-Modes Dimmable • Output Lumen Compensation • End-of-Life Indicator • Input Surge Protection: DM 6kV, CM 10kV • All-Around Protection: OVP, SCP, OTP • Low inrush current • IP66 / IP67 • 5 Years Warranty
