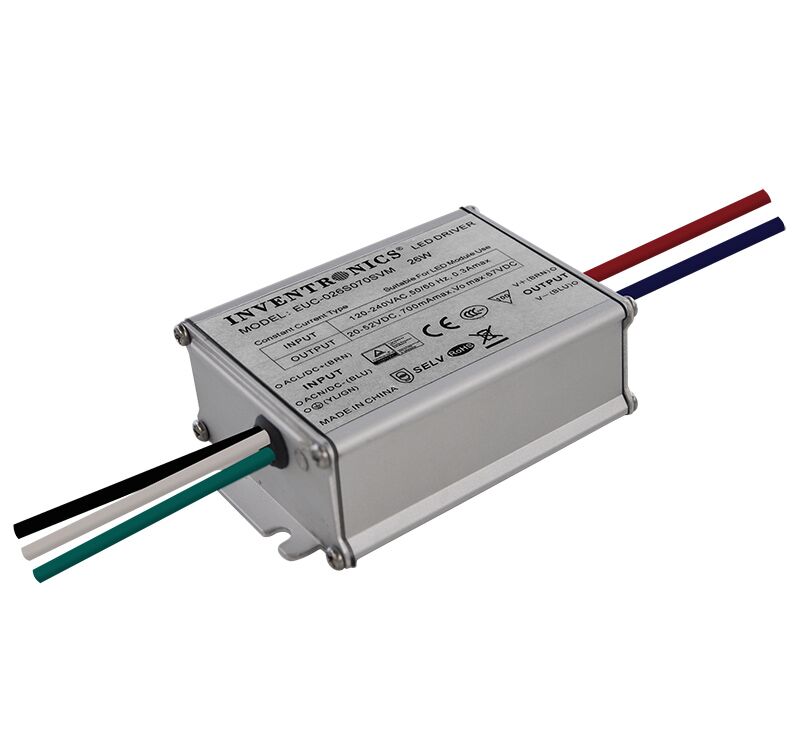

EUC-026SxxxSTM000x 26W IP67 led driver

The EUC-026SxxxSTM series is suitable for North American use. They consist of 26W, constant-current IP66 LED drivers that operate from 90-305Vac. They are ideal for projects that need luminaires at lower levels of brightness without the need of programmability or controls. Their compact shape offers more flexibility to fit inside a multitude of luminaires. They are ideal for low bay, tunnel and street lighting applications.

Category: Tag:

Description

Features:

  • Compact Metal Housing
  • Input Surge Protection:4kV DM, 6kV CM
  • Built-in Protection for Unstable Input Lines:Input Under Voltage Protection,Input Over Voltage Protection,Low Total Harmonic Distortion (THD)
  • Suitable for Built-in Use and Class I Luminaires
  • SELV Output
  • TYPE HL, for Use in a Class I, Division 2 Hazardous (Classified) Location
  • 5 Year Warranty

Detail models:

Model Output
Current
(A)		 Input voltage
(Vac)		 Output
Voltage
(V)		 Output power
(W)		 Effi. QTY per carton
(pcs)		 carton size
(cm)		 GW per carton
(kg)
EUC-026S050STM0003 350mA 90 ~ 305Vac 37 ~ 74Vdc 26W 88.50% 54 54*36*31 19
EUC-026S070STM0004 500mA 90 ~ 305Vac 26 ~ 52Vdc 26W 88.00% 54 54*36*31 19
EUC-026S070STM0002 600mA 90 ~ 305Vac 22 ~ 43Vdc 26W 88.00% 54 54*36*31 19
EUC-026S070STM 700mA 90 ~ 305Vac 20 ~ 37Vdc 26W 87.00% 54 54*36*31 19

Notes: (1) UL, FCC certified input voltage range: 120-277Vac or 127-300Vdc; other certified input voltage range except
UL & FCC: 120-240Vac or 127-250Vdc.
(2) Measured at 100% load and 220 Vac input.
(3) SELV Output.
