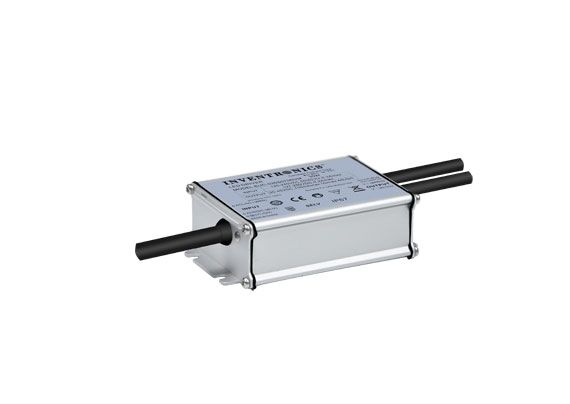

EUC-030SxxxDVM 30W IP67 led driver

The EUC-030SxxxDVM series is suitable for global use (except North America). They consist of 30W, constant-current IP67 LED drivers that operate from 90-305Vac. They are ideal for projects that need luminaires at lower levels of brightness without the need of programmability or controls. Their compact shape offers more flexibility to fit inside a multitude of luminaires. They are ideal for low bay, tunnel and street lighting applications.

Category: Tag:

Description

Features:

  • Compact Metal Housing
  • Dimming Controls:Isolated 0-10V
  • Input Surge Protection:4kV DM, 6kV CM
  • Built-in Protection for Unstable Input Lines:Input Under Voltage Protection,Input Over Voltage Protection
  • Low Total Harmonic Distortion (THD)
  • Suitable for Independent Use and Class I Luminaires
  • 5 Year Warranty

Detail models:

Model Output
Current
(A)
Input voltage
(Vac)
Output
Voltage
(V)
Output power
(W)
Effi. QTY per carton
(pcs)
carton size
(cm)
GW per carton
(kg)
EUC-030S035DVM 350mA 90 ~ 305 Vac 37 – 75 Vdc 26 W 85.00% 54 54*36*31 24
EUC-030S050DVM 500mA 90 ~ 305 Vac 29 – 60 Vdc 30 W 87.00% 54 54*36*31 24
EUC-030S070DVM 700mA 90 ~ 305 Vac 20 – 43 Vdc 30 W 85.50% 54 54*36*31 24

Notes: (1) Certified input voltage range: 120-240Vac or 127-250Vdc (except CCC and KS).
(2) Measured at full load and 220Vac input.
(3) SELV output
