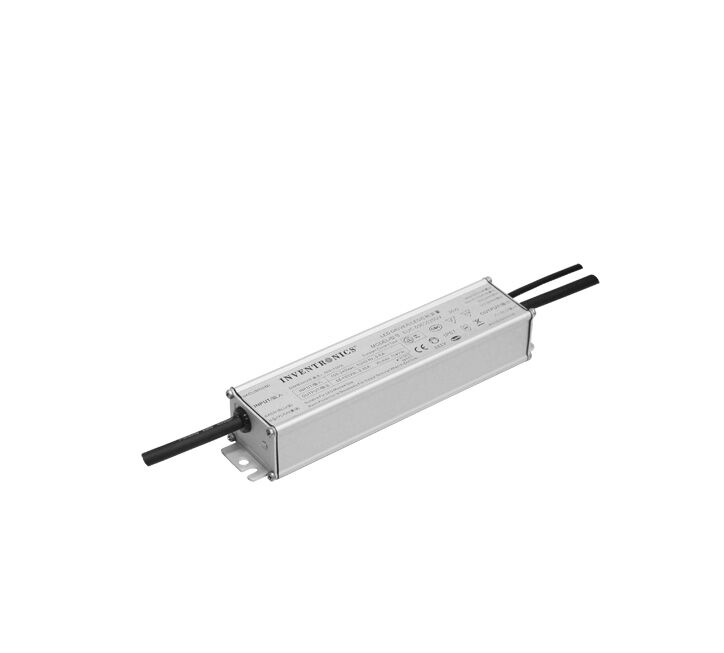

EUC-036SXXXDT(ST) 36W IP66 LED Driver

Not Recommended for New Design
We Recommend the EUM-030SxxxDG or EUM-050SxxxDT as a Replacement
The EUC-036SxxxDV(SV) series is suitable for global use (except North America). They consist of 36W, constant-current IP67 LED drivers that operate from 90-305Vac. This series is the upgraded and improved option over the EUC-0035SxxxDT(ST). They are ideal architectural, decorative, tunnel and street lighting applications.

Category: Tag:

Description

Features:

Not Recommended for New Design
We Recommend the EUM-030SxxxDG or EUM-050SxxxDT as a Replacement

  • Dimming Controls:
    DT: 0-10V
    ST: Non-Dimming
  • Input Surge Protection:4kV DM, 6kV CM
  • SELV Output
  • Improved Performance
  • 5 Year Warranty

Detail models:

Model Output
Current
(A)		 Input voltage
(Vac)		 Output
Voltage
(V)		 Output power
(W)		 Effi. QTY per carton
(pcs)		 carton size
(cm)		 GW per carton
(kg)
EUC-036S035DT(ST) 350mA 90 ~ 305Vac 52 – 103Vdc 36W 89.00% 32 49*30*31 21
EUC-036S045DV(SV) 450mA 90 ~ 305Vac 40 – 80Vdc 36W 88.00% 32 49*30*31 21
EUC-036S070DV(SV) 700mA 90 ~ 305Vac 26 – 52Vdc 36W 88.00% 32 49*30*31 21
EUC-036S105DV(SV) 1050mA 90 ~ 305Vac 18 – 35Vdc 36W 87.00% 32 49*30*31 21
EUC-036S140DV(SV) 1400mA 90 ~ 305Vac 13 – 26Vdc 36W 86.00% 32 49*30*31 21
EUC-036S175DV(SV) 1750mA 90 ~ 305Vac 11 – 21Vdc 36W 85.00% 32 49*30*31 21

Notes: (1) Certified input Voltage range100-240Vac.
(2) Measured at full load and 220 Vac input.
(3) SELV output.
