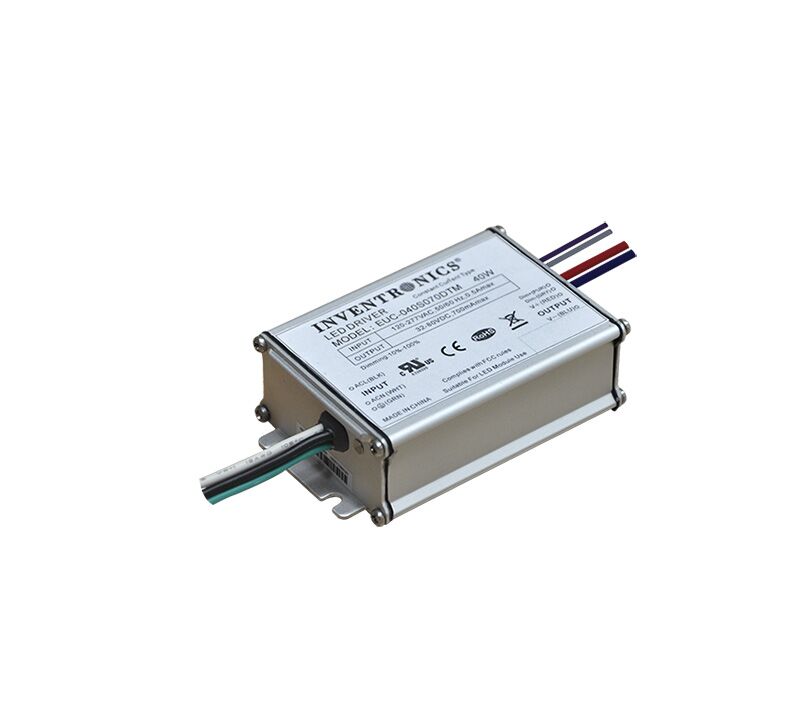

EUC-040SxxxDTM000x 40W IP66 LED Driver

The EUC-040SxxxDTM series is suitable for North American use. They consist of 40W, constant-current IP66 LED drivers that operate from 90-305Vac. They are ideal for projects that need luminaires at lower levels of brightness without the need of programmability or controls. Their compact shape offers more flexibility to fit inside a multitude of luminaires. They are ideal for low bay, tunnel and street lighting applications.

Category: Tag:

Description

Features:

  • Compact Metal Housing
  • Dimming Controls:Isolated 0-10V
  • Input Surge Protection:4kV DM, 6kV CM
  • Built-in Protection for Unstable Input Lines:
    Input Under Voltage Protection
    Input Over Voltage Protection
  • Low Total Harmonic Distortion (THD)
  • Suitable for Built-in Use and Class I Luminaires
  • Class 2 and SELV Output
  • TYPE HL, for use in a Class I, Division 2 Hazardous (Classified) Location
  • 5 Year Warranty

Detail models:

Model Output
Current
(A)		 Input voltage
(Vac)		 Output
Voltage
(V)		 Output power
(W)		 Effi. QTY per carton
(pcs)		 carton size
(cm)		 GW per carton
(kg)
EUC-040S070DTM0004 500mA 90 ~ 305Vac 40 ~ 80Vdc 40W 87.00% 54 54*36*31 25
EUC-040S070DTM 700mA 90 ~ 305Vac 32 ~ 57Vdc 40W 86.00% 54 54*36*31 25
EUC-040S110DTM0005(4) 860mA 90 ~ 305Vac 23 ~ 45Vdc 40W 86.00% 54 54*36*31 25
EUC-040S110DTM0001(4) 1050mA 90 ~ 305Vac 21 ~ 38Vdc 40W 85.00% 54 54*36*31 25

Notes: (1) UL, FCC certified input voltage range: 120-277Vac/127-300Vdc; other certified input voltage range except UL & FCC: 120-240Vac/127-250Vdc.
(2) Measured at full load and 220 Vac input.
(3) SELV output.
(4) Class 2 output.
