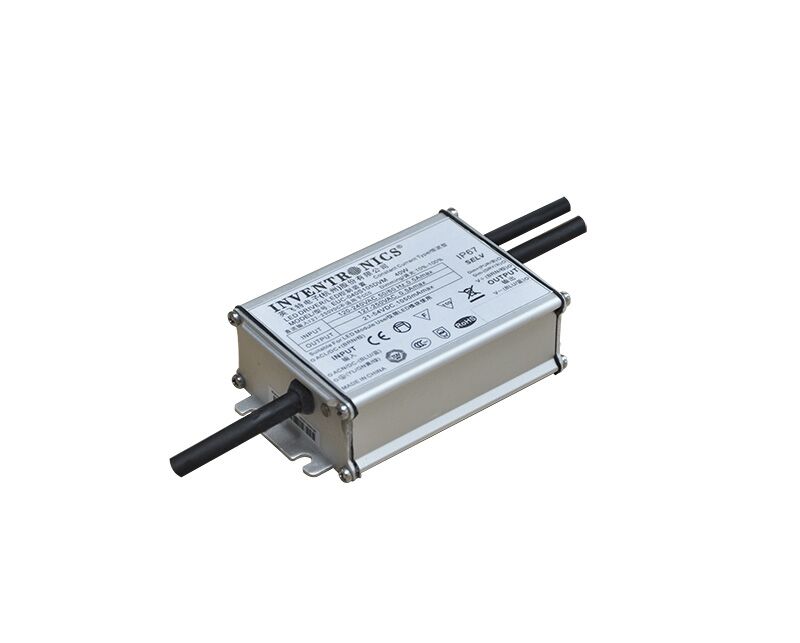

EUC-040SXXXDVM000X 40W IP66 LED Driver

The EUC-040SxxxDVM series is suitable for global use (except North America). They consist of 40W, constant-current IP67 LED drivers that operate from 90-305Vac. They are ideal for projects that need luminaires at lower levels of brightness without the need of programmability or controls. Their compact shape offers more flexibility to fit inside a multitude of luminaires. They are ideal for low bay, tunnel and street lighting applications.

Category: Tag:

Description

Features:

  • Compact Metal Housing
  • Dimming Controls:Isolated 0-10V
  • Input Surge Protection:4kV DM, 6kV CM
  • Built-in Protection for Unstable Input Lines:
    Input Under Voltage Protection
    Input Over Voltage Protection
  • Low Total Harmonic Distortion (THD)
  • Suitable for Independent Use and Class I Luminaires
  • 5 Year Warranty

Detail models:

Model Output
Current
(A)		 Input voltage
(Vac)		 Output
Voltage
(V)		 Output power
(W)		 Effi. QTY per carton
(pcs)		 carton size
(cm)		 GW per carton
(kg)
EUC-040S070DVM0004 500mA 90 ~ 305Vac 40 ~ 80Vdc 40W 87.00% 54 54*36*31 25
EUC-040S070DVM 700mA 90 ~ 305Vac 32 ~ 57Vdc 40W 86.00% 54 54*36*31 25
EUC-040S110DVM0005(4) 860mA 90 ~ 305Vac 23 ~ 45Vdc 40W 86.00% 54 54*36*31 25
EUC-040S110DVM0001(4) 1050mA 90 ~ 305Vac 21 ~ 38Vdc 40W 85.00% 54 54*36*31 25

Notes: (1) Certified input voltage range: 120-240Vac/127-250Vdc.
(2) Measured at 100% load and 220 Vac input.
