EUM-050SxxxDF

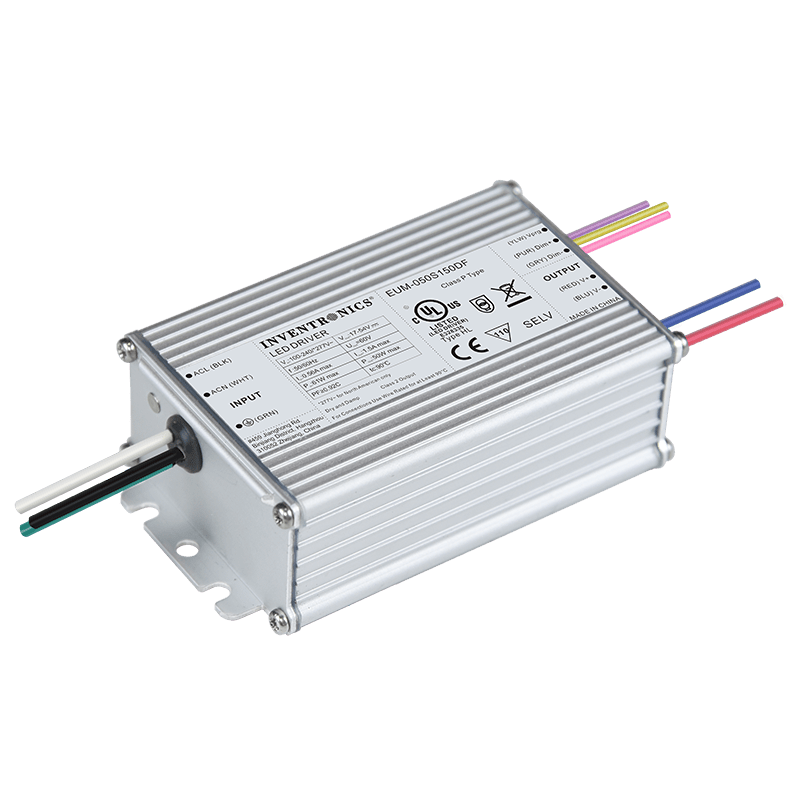

The EUM-050SxxxDF series is suitable for North American use. They consist of IP66 Class P, programmable LED drivers that offer isolated dimming, design flexibility and built-in surge protection. They operate from 90-305Vac and provide the full 50W at a wide output current range.  They are ideal for low bay, tunnel and street lighting applications.

Category: Tag:

Description

Features of EUM-050SxxxDF

  • Programmable, Without the need of Powering on the Driver
  • Isolated Dimming Controls:1-5V, 1-10V, 10V PWM, Multiple Timers
  • Built-in Surge Protection:4kV DM, 6kV CM
  • Output Lumen Compensation
  • Class 2 Models Available
  • SELV Output Models Available
  • UL Class P
  • Type HL, for Use in a Class I, Division 2 Hazardous (Classified) Location
  • IP66 Rated with UL Dry, Damp
  • 5 Year Warranty

Detail models with packing information:

Model Adjustable
Output Current
Range		 Full-Power
Current
Range(1)		 Default
Output
Current		 Input voltage Max. Output power Output vol. Effi. QTY per carton
(pcs)		 carton size
(cm)		 GW per carton
(kg)
EUM-030S050DG 30-500mA 300-500mA 350mA 90~305 Vac/127~300 Vdc 30w 30~100 Vdc 88.00% 40 54*36*31 22
EUM-030S105DG 55-1050mA 550-1050mA 700mA 90~305 Vac/127~300 Vdc 30w 17~54 Vdc 87.00%
EUM-030S050DT 30-500mA 300-500mA 350mA 90~305 Vac/127~300 Vdc 30w 30~100 Vdc 88.00% 40 54*36*31 22
EUM-030S105DT 55-1050mA 550-1050mA 700mA 90~305 Vac/127~300 Vdc 30w 17~54 Vdc 87.00%
EUM-030S050DB 30-500mA 300-500mA 350mA 90~305 Vac/127~300 Vdc 30w 30~100 Vdc 88.00% 40 54*36*31 22
EUM-030S105DB 55-1050mA 550-1050mA 700mA 90~305 Vac/127~300 Vdc 30w 17~54 Vdc 87.00%
EUM-030S050DF 30-500mA 300-500mA 350mA 90~305 Vac/127~300 Vdc 30w 30~100 Vdc 88.00% 40 54*36*31 22
EUM-030S105DF 55-1050mA 550-1050mA 700mA 90~305 Vac/127~300 Vdc 30w 17~54 Vdc 87.00%

Additional information

IP rate:

IP67
Dimensions(mm)

112 × 64 × 36.5
