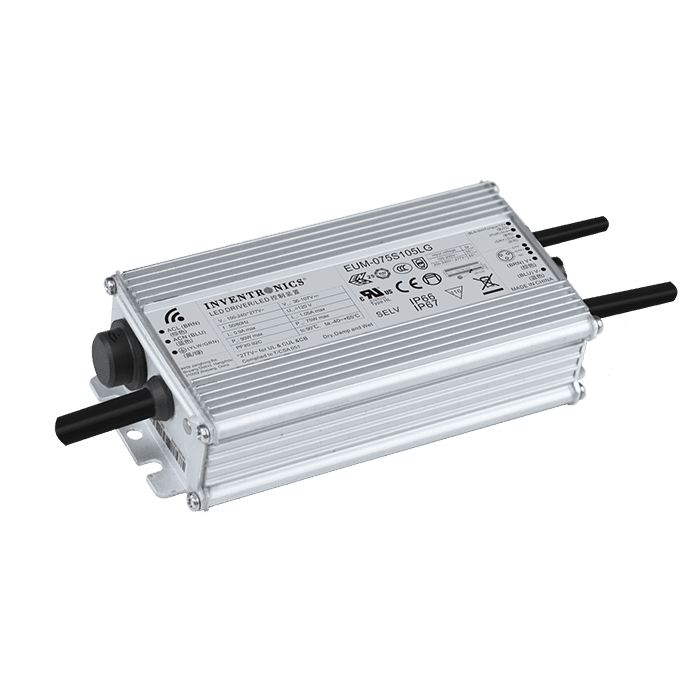

EUM-075SxxxLG series led driver

The EUM-075SxxxLG series is suitable for global use. They consist of global, IP66/IP67 LED drivers that offer NFC wireless programming, driver health monitoring with digital dimming, isolated dimming, design flexibility, a high level of surge protection and a global cable that helps reduce SKUs for world-wide use. They provide integrate AC power monitoring and Dim-to-Off functionality for powering low voltage controls. They operate from 90-305Vac and provide the full 75W at a wide output current range. They are ideal for bay, area and roadway lighting applications.

Category: Tag:

Description

Features:

  • Integrated AC Power Monitoring with High Accuracy up to ±1%
  • Inventronics Proprietary Digital Dimming Health Monitoring
    • UART Based Communication Protocol Compliant with T/CSA-051
  • Wireless Programming via Near Field Communication (NFC)
    • Compatible with Zhaga Book 24 Programmers
  • Isolated Dimming Controls:
    • 0-10V, PWM, Multiple Timers
  • Controls-Ready
    • Always-On Auxiliary Power: 12Vdc, 250mA, 3W (Transient Peak Power up to 10W)
    • Dim-to-Off
  • Optimized, More Compact Form Factor
  • High Level of Built-in Surge Protection:
    • 6kV DM, 10kV CM
  • Input Over Voltage (IOVP) and Input Under Voltage (IUVP) Protection
  • End-of-Life Indicator
  • Thermal Sensing and Protection for LED Module
  • Simplified Design for Easier Hi-Pot Testing
  • Output Lumen Compensation
  • Class 2 Models Available
  • SELV Output Models Available
  • IP66 and IP67 and UL Dry, Damp, Wet Location
  • TYPE HL, for use in a Class I, Division 2 Hazardous
  • EUM-075SxxxLG Models: Global Cable to Reduce Inventory SKUs
  • EUM-075SxxxLB Models: BIS Certified
  • 7 Year Warranty



Detail models with packing information:

Model Adjustable
Output Current
Range		 Full-Power
Current
Range(1)		 Default
Output
Current		 Input voltage Output power Output vol. Effi. QTY per carton
(pcs)		 carton size
(cm)		 GW per carton
(kg)
EUM-075S105LG 70-1050mA 700-1050mA 700mA 90~305Vac/127~431Vdc 75w 36~107Vdc 90.50% 25 49*30*31 19
EUM-075S150LG 105-1500mA  1050-1500mA 1050mA 90~305Vac/127~431Vdc 75w 25~72Vdc 89.50%
EUM-075S210LG 140-2100mA  1400-2100mA 2100mA 90~305Vac/127~431Vdc 75w 18~54Vdc 89.00%
EUM-075S105LT 70-1050mA 700-1050mA 700mA 90~305Vac/127~431Vdc 75w 36~107Vdc 90.50% 25 49*30*31 19
EUM-075S150LT 105-1500mA  1050-1500mA 1050mA 90~305Vac/127~431Vdc 75w 25~72Vdc 89.50%
EUM-075S210LT 140-2100mA  1400-2100mA 2100mA 90~305Vac/127~431Vdc 75w 18~54Vdc 89.00%
EUM-075S105LB 70-1050mA 700-1050mA 700mA 90~305Vac/127~431Vdc 75w 36~107Vdc 90.50% 25 49*30*31 19
EUM-075S150LB 105-1500mA  1050-1500mA 1050mA 90~305Vac/127~431Vdc 75w 25~72Vdc 89.50%
EUM-075S210LB 140-2100mA  1400-2100mA 2100mA 90~305Vac/127~431Vdc 75w 18~54Vdc 89.00%

Notes: (1) Output current range with constant power at 75W
(2) Certified input voltage range: UL, FCC 100-277Vac; otherwise 100-240Vac.
(3) Measured at 100% load and 220Vac input (see below “General Specifications” for details).
(4) LG are UL Recognized, ENEC and CCC, etc. models; LT are UL Class P models; LB are BIS models.
