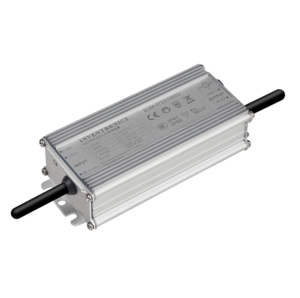

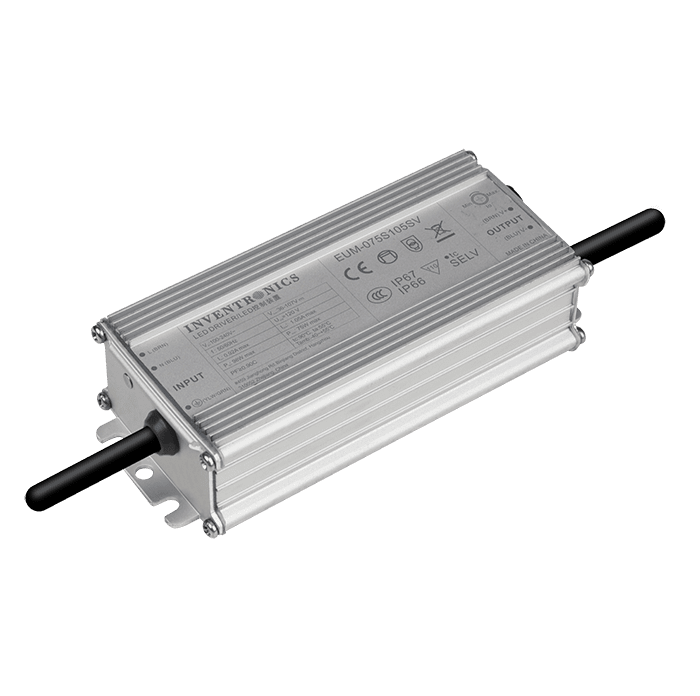

A High-Performance LED Driver for Diverse Applications–EUM-075SxxxSV

The EUM-075SxxxSV series is a 75W, constant-current, AOC LED driver that operates from 90-305Vac input with excellent power factor. It is created for many lighting applications including high bay, tunnel and roadway
lights, etc. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.

Category: Tag:

Description

Features:

  • High Efficiency: Maximize energy savings with the EUM-075SxxxSV series’ up to 92% efficiency rating.
  • Full Power at Wide Output Current Range: Deliver consistent performance across a broad range of output currents, ensuring optimal operation in different lighting scenarios.
  • Adjustable Output Current: Fine-tune your lighting output with the adjustable output current (AOC) feature, controlled by a potentiometer.
  • Non-Dimming Control: Ideal for applications where constant lighting output is required.
  • Robust Surge Protection: Safeguard your investment against electrical surges with the driver’s input surge protection (DM 4kV, CM 6kV).
  • Comprehensive Protection: Enjoy peace of mind with the EUM-075SxxxSV series’ all-around protection against output over voltage, short circuit, and over temperature.
  • IP66/IP67 Rating: Ensure reliable operation in harsh environments with the driver’s high ingress protection rating.
  • 5-Year Warranty: Benefit from our confidence in the EUM-075SxxxSV series’ quality and durability with a 5-year warranty.

Ideal Applications:

  • High Bay Lighting: Illuminate large, open spaces like warehouses, factories, and sports arenas.
  • Tunnel and Roadway Lighting: Provide reliable illumination for transportation infrastructure.
  • Outdoor Commercial Lighting: Power lighting fixtures in parking lots, plazas, and outdoor signage.

Detail models:

Model Adjustable
Output Current
Range		 Full-Power
Current
Range(1)		 Default
Output
Current		 Input voltage Output power Output vol. Effi. QTY per carton
(pcs)		 carton size
(cm)		 GW per carton
(kg)
EUM-075S105SV 525-1050mA 700-1050mA 700mA 90~305Vac/127~431Vdc 75w 36~107Vdc 90.00% 25 49*30*31 19
EUM-075S150SV 750-1500mA 1050-1500mA 1050mA 90~305Vac/127~431Vdc 75w 25~72Vdc 90.00% 25 49*30*31 19
EUM-075S280SV 1050-2100mA  1400-2100mA 2100mA 90~305Vac/127~431Vdc 75w 18~54Vdc 89.50% 25 49*30*31 19

Notes: (1) Output current range with constant power at 75W.
(2) Certified input voltage range: 100-240Vac.
(3) Measured at 100% load and 220Vac input (see below “General Specifications” for details).
(4) SELV output.
