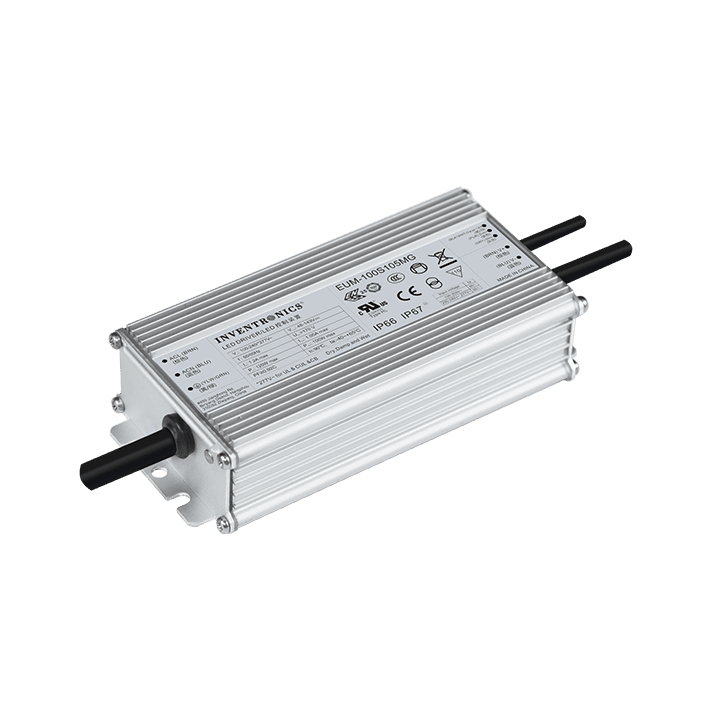

Description
Features:
- Full-Power at a Wide Output Current Range
- Isolated Dimming Controls:0-10V, PWM, Multiple Timers
- Controls-Ready
Always-On Auxiliary Power: 12Vdc, 250mA, 3W (Transient Peak Power up to 10W)
Dim-to-Off - High Level of Built-in Protection:6kV DM, 10kV CM
Input Over Voltage (IOVP) and Input Under Voltage (IUVP) Protection - Inventronics Proprietary Digital Dimming Health Monitoring
UART Based Communication Protocol - Optimized, More Compact Form Factor
- End-of-Life Indicator
- Output Lumen Compensation
- Class 2 and SELV Output Models Available
- IP66 and IP67 and UL Dry, Damp, Wet Location
- UL Class P
- TYPE HL, for use in a Class I, Division 2 Hazardous
- 5 Year Warranty
Detail models with packing information
| Model | Adjustable Output Current Range |
Full-Power Current Range(1) |
Default Output Current |
Input voltage | Output power | Output vol. | Effi. | QTY per carton (pcs) |
carton size (cm) |
GW per carton (kg) |
| EUM-100S105MG | 70-1050mA | 700-1050mA | 700mA | 90~305Vac/127~431Vdc | 100w | 48~143Vdc | 92.50% | 25 | 49*30*31 | 19 |
| EUM-100S106MG | 105-1500mA | 1050-1500mA | 1050mA | 90~305Vac/127~431Vdc | 100w | 34~95Vdc | 92.00% | 25 | 49*30*31 | 19 |
| EUM-100S107MG | 175-2800mA | 1750-2800mA | 2100mA | 90~305Vac/127~431Vdc | 100w | 17~54Vdc | 91.00% | 25 | 49*30*31 | 19 |
Notes: (1) Output current range with constant power at 100W
(2) Certified input voltage range: UL, FCC 100-277Vac; otherwise 100-240Vac.
(3) Measured at 100% load and 220Vac input (see below “General Specifications” for details).
(4) SELV output.
(5) Class 2 & SELV output.
(6) G are UL Recognized, ENEC and CCC, etc. models
