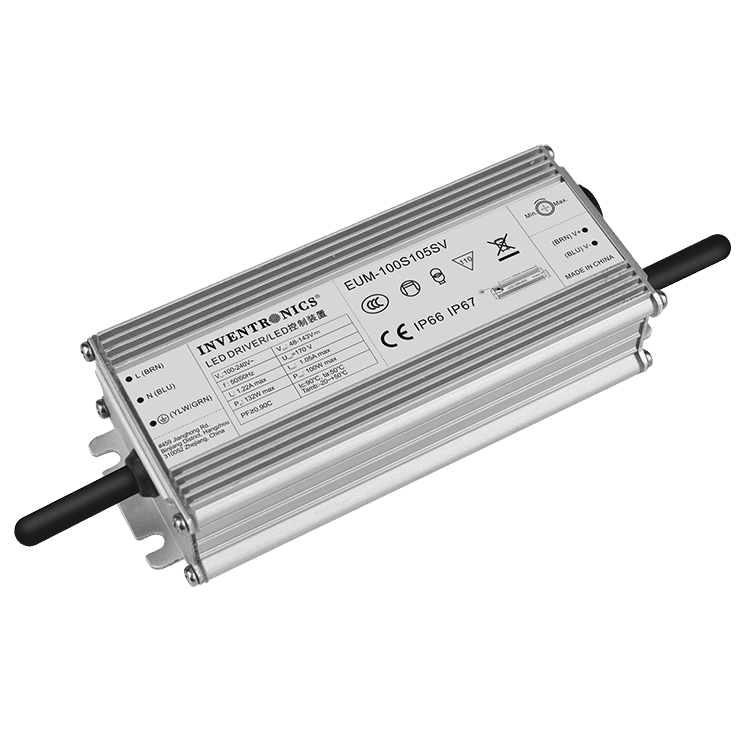

EUM-100SxxxSV series led driver

The EUM-100SxxxSV series is suitable for global use (except North America). They consist of IP66/IP67 Class I and II, programmable LED drivers that offer isolated dimming, design flexibility and built-in surge protection. They operate from 90-305Vac and provide the full 100W at a wide output current range.  They are ideal for low bay, tunnel and street lighting applications.

Category: Tag:

Description

Features:

  • High Efficiency (Up to 92%)
  • Full Power at Wide Output Current Range (Constant Power)
  • Adjustable Output Current (AOC) with Potentiometer
  • Non-dimming Control
  • Input Surge Protection:4kV DM, 6kV CM
  • All-Around Protection:OVP, SCP, OTP
  • IP66/IP67
  • 5 Year Warranty

Detail models:

Model Adjustable
Output Current
Range		 Full-Power
Current
Range(1)		 Default
Output
Current		 Input voltage Output power Output vol. Effi. QTY per carton
(pcs)		 carton size
(cm)		 GW per carton
(kg)
EUM-100S105SV 525-1050mA 700-1050mA 700mA 90~305Vac/127~431Vdc 100w 48~143Vdc 93.00% 25 49*30*31 19
EUM-100S150SV 750-1500mA 1050-1500mA 1050mA 90~305Vac/127~431Vdc 100w 34~95Vdc 93.00% 25 49*30*31 19
EUM-100S280SV 1400-2800mA  1750-2800mA 2100mA 90~305Vac/127~431Vdc 100w 17~54Vdc 92.00% 25 49*30*31 19

Notes: (1) Output current range with constant power at 100W.
(2) Certified input voltage range: 100-240Vac.
(3) Measured at 100% load and 220Vac input (see below “General Specifications” for details).
(4) SELV output.
