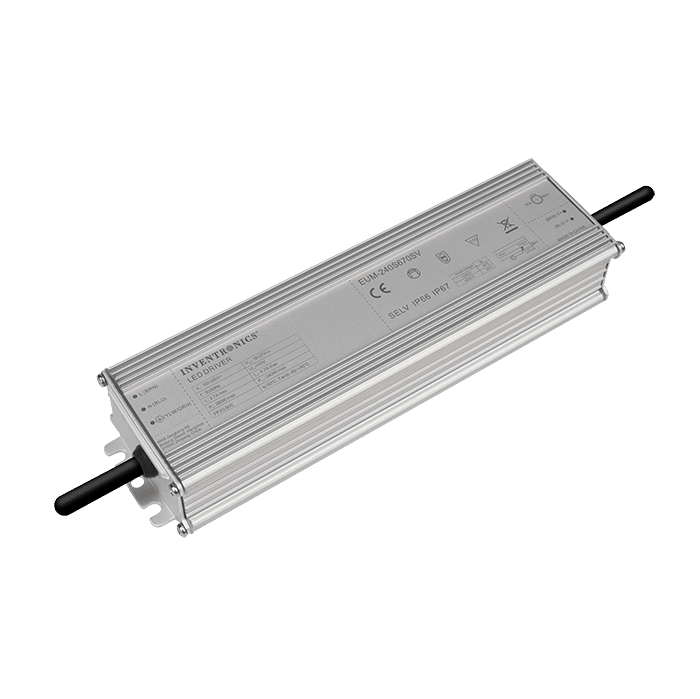

A Powerful LED Driver for Demanding Applications-EUM-240SXXXSV

The EUM-240SxxxSV series is a 240W, constant-current, AOC LED driver that operates from 90-305Vac input
with excellent power factor. It is created for many lighting applications including high bay, high mast and roadway,
lights etc. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly
improving reliability and extending product life. To ensure trouble-free operation, protection is provided against
input surge, output over voltage, short circuit, and over temperature.

Category: Tag:

Description

Features:

  • High Efficiency (Up to 94.5%)
  • Full Power at Wide Output Current Range (Constant Power)
  • Adjustable Output Current (AOC) with Potentiometer
  • Non-dimming Control
  • Input Surge Protection:DM 4kV, CM 6kV
  • All-Around Protection
  • OVP, SCP, OTP
  • IP66 and IP67 Rated
  • 5 Year Warranty

Detail models:

Model Adjustable
Output Current
Range		 Full-Power
Current
Range(1)		 Default
Output
Current		 Input voltage Output power Output vol. Effi. QTY per carton
(pcs)		 carton size
(cm)		 GW per carton
(kg)
EUM-240S105SV 525-1050mA 700-1050mA  700mA 90~305Vac 240W 115~343Vdc 94.50% 20 49*30*31 22
EUM-240S150SV 750-1500mA 1050-1500mA 1050mA 90~305Vac 240W 80~229Vdc 94.00% 20 49*30*31 22
EUM-200S350SV 1750-3500mA 2150-3500mA 2150mA 90~305Vac 240W 35~111Vdc 93.00% 20 49*30*31 22
EUM-200S670SV 3050-6700mA 4200-6700mA 4900mA 90~305Vac 240W 18 ~ 57Vdc 92.50% 20 49*30*31 22

Notes: (1) Output current range with constant power at 240W.
(2) Certified input voltage range: 100-240Vac.
(3) Measured at 100% load and 220Vac input (see below “General Specifications” for details).
(4) SELV output.
