Description
Features:
- Panel Mount Connectors Offering One-Step Connection
Provides Easy Installation for New Facilities or Retrofit - Brackets Offer Multiple Installation Options to Fit any Configuration
- Programmable with Full-Power at a Wide Output Current Range
- Isolated Dimming Controls:
0-10V, PWM, Multiple Timers
Minimum Dimming Level with 5% or 10% Selectable
Maximum Dimming Level with 9V or 10V Selectable
Fade Time Adjustable - Controls-Ready
Always-On Auxiliary Power: 12Vdc, 250mA, 3W (Transient Peak Power up to 10W)
Dim-to-Off - Low Inrush Current
- Inventronics Proprietary Digital Dimming Health Monitoring
UART Based Communication Protocol - High Level of Built-in Protection:6kV DM, 10kV CM
- Input Under Voltage (IUVP) and Input Over Voltage (IOVP) Protection
- Extruded Metal Enclosure Available in Silver or White
White Provides Higher Reflectivity for Grow Applications - End-of-Life Indicator
- Output Lumen Compensation
- SELV Output Models Available
- IP66 and IP67 and UL Dry, Damp, Wet Location
- TYPE HL, for use in a Class I, Division 2 Hazardous
- 5 Year Warranty
Detail models:
| Model | Adjustable Output Current Range |
Full-Power Current Range(1) |
Default Output Current |
Input voltage | Output power | Output vol. (v) |
Effi. | QTY per carton (pcs) |
carton size (cm) |
GW per carton (kg) |

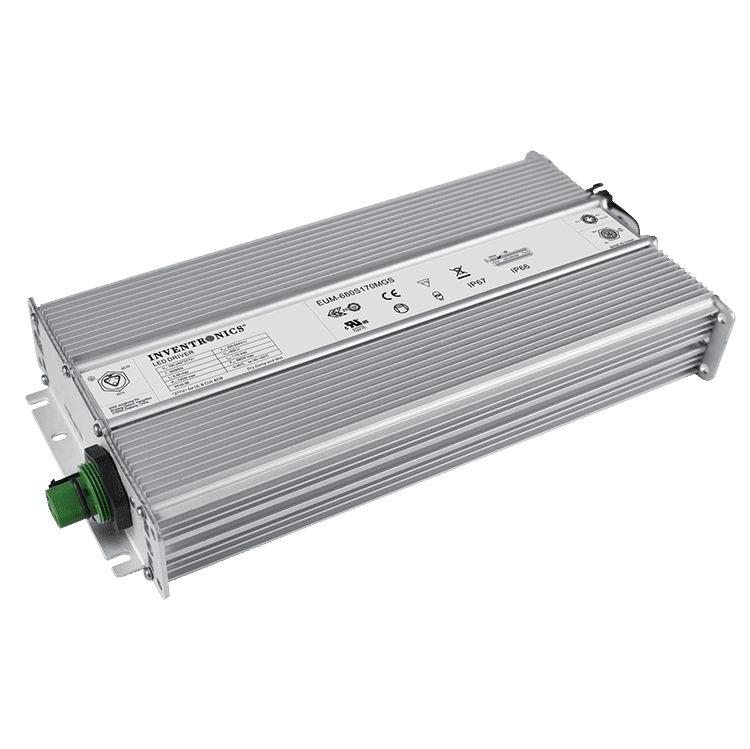

| EUM-680S170MGS | 0.125-1.7A | 1.25-1.7A | 1.7 A | 90~305Vac | 680w | 200 ~ 544 | 95.50% | 4 | 54*36*18 | 16 |
| EUM-680S240MGS | 0.18-2.4A | 1.8-2.4A | 2.1 A | 90~305Vac | 680w | 141.5 ~ 378 | 94.50% | 4 | 54*36*18 | 16 |
| EUM-680S350MGS | 0.26-3.5A | 2.6-3.5A | 3.5 A | 90~305Vac | 680w | 97.1 ~ 262 | 95.00% | 4 | 54*36*18 | 16 |
| EUM-680S560MGS | 0.42-5.6A | 4.2-5.6A | 5.6 A | 90~305Vac | 680w | 60.7 ~ 163 | 94.50% | 4 | 54*36*18 | 16 |
| EUM-680S840MGS | 0.63-8.4A | 6.3-8.4A | 8.4 A | 90~305Vac | 680w | 40.4 ~ 108 | 95.00% | 4 | 54*36*18 | 16 |
| EUM-680S15AMGS | 1.26-15.0A | 12.6-15.0A | 15A | 90~305Vac | 680w | 22.6 ~ 54 | 95.50% | 4 | 54*36*18 | 16 |
Notes: (1) Output current range with constant power at 680W.
(2) Certified input voltage range: KC: 100-240Vac; otherwise: 100-277Vac.
(3) Measured at 100% load and 220Vac input (see below “General Specifications” for details).
(4) SELV output.
