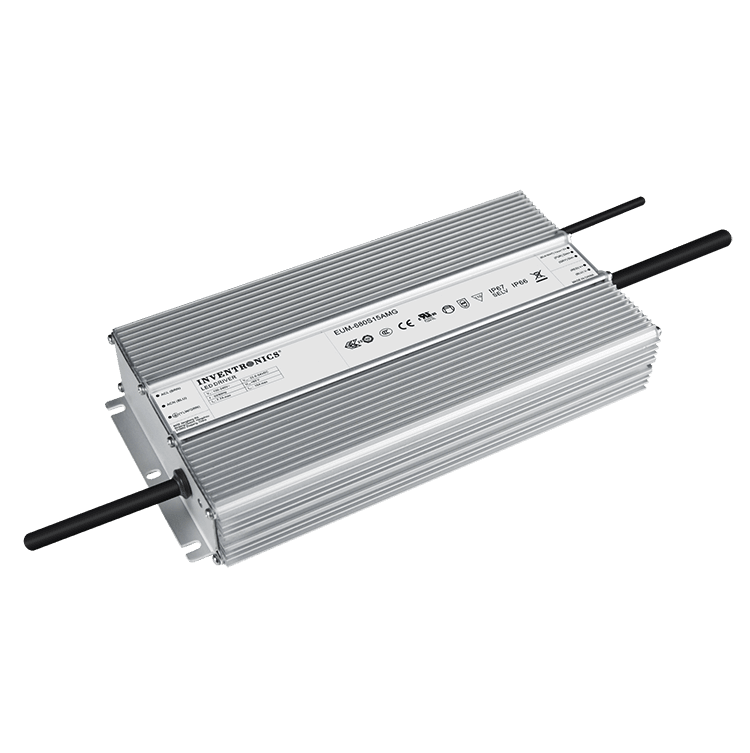

EUM-680SxxxMG series led driver

The EUM-680SxxxMG series is suitable for global use. They consist of global, IP66/IP67 LED drivers that provide Always-On Auxiliary Power and Dim-to-Off functionality for powering low voltage controls. They also offer programmability, driver health monitoring with digital dimming, isolated dimming, design flexibility, a high level of surge protection and a global cable that helps reduce SKUs for world-wide use. They operate from 90-305Vac and provide the full 680W at a wide output current range. They are ideal for high bay, area and roadway lighting applications.

Description

Features:

  • Full-Power at a Wide Output Current Range
  • Isolated Dimming Controls:
    0-10V, PWM, Multiple Timers
    Minimum Dimming Level with 5% or 10% Selectable
    Maximum Dimming Level with 9V or 10V Selectable
    Fade Time Adjustable
  • Controls-Ready
    Always-On Auxiliary Power: 12Vdc, 250mA, 3W (Transient Peak Power up to 10W)
    Dim-to-Off
  • Low Inrush Current
  • High Level of Built-in Protection:6kV DM, 10kV CM
  • Input Under Voltage (IUVP) and Input Over Voltage (IOVP) Protection
  • Inventronics Proprietary Digital Dimming Health Monitoring
    UART Based Communication Protocol
  • Global Cable Design to Reduce SKUs (with UL)
  • Optimized, More Compact Form Factor
  • End-of-Life Indicator
  • Output Lumen Compensation
  • SELV Output Models Available
  • IP66 and IP67 and UL Dry, Damp, Wet Location
  • TYPE HL, for use in a Class I, Division 2 Hazardous
  • 5 Year Warranty

Detail models:

Model Adjustable
Output Current
Range
Full-Power
Current
Range(1)
Default
Output
Current
Input voltage Output power Output vol.
(v)
Effi. QTY per carton
(pcs)
carton size
(cm)
GW per carton
(kg)
EUM-680S170MG 0.125-1.7A 1.25-1.7A 1.7 A 90~305Vac 680w 200 ~ 544 95.00% 4 54*36*18 16
EUM-680S240MG 0.18-2.4A 1.8-2.4A 2.1 A 90~305Vac 680w 141.5 ~ 378 95.00% 4 54*36*18 16
EUM-680S350MG 0.26-3.5A 2.6-3.5A 3.5 A 90~305Vac 680w 97.1 ~ 262 95.00% 4 54*36*18 16
EUM-680S560MG 0.42-5.6A 4.2-5.6A 5.6 A 90~305Vac 680w 60.7 ~ 163 95.00% 4 54*36*18 16
EUM-680S840MG 0.63-8.4A 6.3-8.4A 8.4 A 90~305Vac 680w 40.4 ~ 108 95.00% 4 54*36*18 16
EUM-680S15AMG 1.26-15.0A 12.6-15.0A 15A 90~305Vac 680w 22.6 ~ 54 95.00% 4 54*36*18 16

Notes: (1) Output current range with constant power at 680W.
(2) Certified input voltage range: UL, FCC, CB 100-277Vac; otherwise 100-240Vac
(3) Measured at 100% load and 220Vac input (see below “General Specifications” for details).
(4) SELV output
(5) MG are UL Recognized, ENEC and CCC, etc. models;
