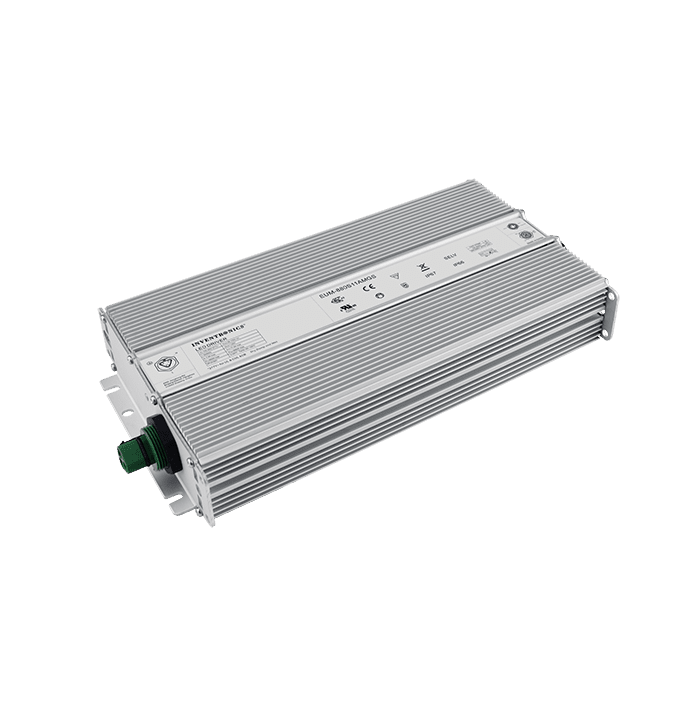

EUM-880SXXXMGSseries led driver

The EUM-880SxxxMGS series is a 880W, constant-current, programmable and IP66/IP67 rated LED driver that operates from 90-305Vac input with excellent power factor. Created for many lighting applications including high mast, sports, UV-LED, aquaculture and horticulture, etc. It provides an auxiliary voltage and dim-to-off functionality for powering low voltage, wireless controls. The dimming control supports 0-10V dimming as well as two-way communication via Digital Dimming, a UART based communication protocol. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, input under voltage, input over voltage, output over voltage, short circuit, and over temperature.

Category: Tag:

Description

Features:

  • Panel Mount Connectors Facilitates Installation
  • Brackets Accommodates Variety of Hanging Applications
  • Ultra High Efficiency (Up to 96%)
  • Full-Power at a Wide Output Current Range (Constant Power)
  • Adjustable Output Current (AOC)with Programmability
  • Isolated 0-10V/PWM/3-Timer-Modes Dimmable
  • INV Digital Dimming, UART Based Communication Protocol
  • Dim-to-Off with Standby Power ≤ 0.5W
  • Minimum Dimming Level with 5% or 10% Selectable
  • Maximum Dimming Level with 9V or 10V Selectable
  • Fade Time Adjustable
  • Always-on Auxiliary Power: 12Vdc, 250mA
  • Low inrush current
  • Output Lumen Compensation
  • End-of-Life Indicator
  • Input Surge Protection: DM 6kV, CM 10kV
  • All-Around Protection: IOVP, IUVP, OVP, SCP, OTP
  • IP66/IP67 and UL Dry/Damp/Wet Location
  • TYPE HL, for use in a Class I, Division 2 Hazardous(Classified) Location
  • 5 Year Warranty

Detail models:

Model Adjustable
Output Current
Range		 Full-Power
Current
Range(1)		 Default
Output
Current		 Input voltage Output power Output vol. Effi. QTY per carton
(pcs)		 carton size
(cm)		 GW per carton
(kg)
EUM-880S280MGS 0.195-2.8A 1.95-2.8A 2.1 A 90~305Vac 880w 157 ~ 452 95.00% 4 54*36*18 17
EUM-880S420MGS 0.300-4.2A 3.0-4.2A 4.2 A 90~305Vac 880w 104 ~ 294 95.50% 4 54*36*18 17
EUM-880S700MGS 0.490-7.0A 4.9-7.0A 5.6 A 90~305Vac 880w 63 ~ 180 96.00% 4 54*36*18 17
EUM-880S11AMGS 0.800-11.5A 8.0-11.5A 8.4 A 90~305Vac 880w 38 ~ 110 94.50% 4 54*36*18 17
EUM-880S20AMGS 1.630-20.0A  16.3-20.0A 20.0 A 90~305Vac 880w 22 ~ 54 95.50% 4 54*36*18 17

Notes: (1) Output current range with constant power at 880W.
(2) Certified input voltage range: UL, FCC 100-277Vac; otherwise 100-240Vac
(3) Measured at 100% load and 220Vac input (see below “General Specifications” for details).
(4) SELV output
