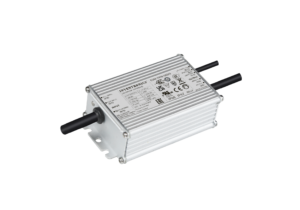

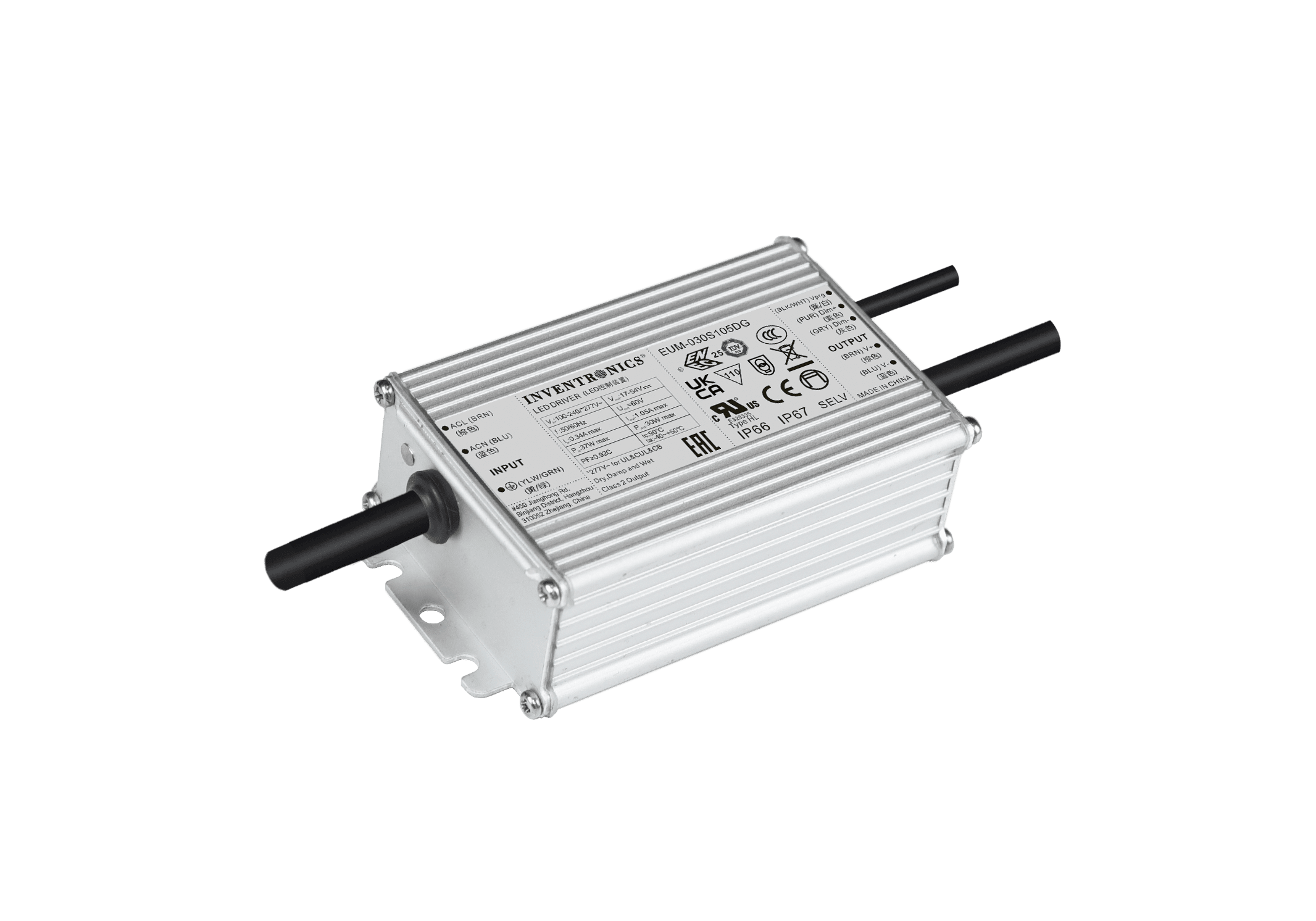

EUM-030SxxxDG

Description:
The EUM-030SxxxDx series is a 30W, constant-current, programmable and IP66/IP67 rated LED driver that operates from 90-305Vac input with excellent power factor. It is created for many lighting applications including low bay, tunnel and street, etc. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.

Description

Product features:

  • Programmable, Without the need of Powering on the Driver
  • Isolated Dimming Controls:
    1-5V, 1-10V, 10V PWM, Multiple Timers
  • Built-in Surge Protection:
    4kV DM, 6kV CM
  • Output Lumen Compensation
  • Suitable for Luminaires with Protection Class I
  • Class 2 Models Available
  • SELV Output Models Available
  • Type HL, for Use in a Class I, Division 2 Hazardous (Classified) Location
  • IP66 and IP67 Rated with UL Dry, Damp, Wet Location
  • EUM-030SxxxDG Models: Global Cable to Reduce Inventory SKUs
  • EUM-030SxxxDB Models: BIS Certified
  • 5 Year Warranty

Detail models with packing information:

Model Adjustable
Output Current
Range
Full-Power
Current
Range(1)
Default
Output
Current
Input voltage Max. Output power Output vol. Effi. QTY per carton
(pcs)
carton size
(cm)
GW per carton
(kg)
EUM-030S050DG 30-500mA 300-500mA 350mA 90~305 Vac/127~300 Vdc 30w 30~100 Vdc 88.00% 40 54*36*31 22
EUM-030S105DG 55-1050mA 550-1050mA 700mA 90~305 Vac/127~300 Vdc 30w 17~54 Vdc 87.00%
EUM-030S050DT 30-500mA 300-500mA 350mA 90~305 Vac/127~300 Vdc 30w 30~100 Vdc 88.00% 40 54*36*31 22
EUM-030S105DT 55-1050mA 550-1050mA 700mA 90~305 Vac/127~300 Vdc 30w 17~54 Vdc 87.00%
EUM-030S050DB 30-500mA 300-500mA 350mA 90~305 Vac/127~300 Vdc 30w 30~100 Vdc 88.00% 40 54*36*31 22
EUM-030S105DB 55-1050mA 550-1050mA 700mA 90~305 Vac/127~300 Vdc 30w 17~54 Vdc 87.00%
EUM-030S050DF 30-500mA 300-500mA 350mA 90~305 Vac/127~300 Vdc 30w 30~100 Vdc 88.00% 40 54*36*31 22
EUM-030S105DF 55-1050mA 550-1050mA 700mA 90~305 Vac/127~300 Vdc 30w 17~54 Vdc 87.00%

Notes:

DG are UL Recognized, ENEC and CCC, etc.

DT are UL Class P models; DB are BIS models;

DF are UL Class P models with flying leads.
