Description
Key Features:
-
- Ultra High Efficiency: Maximize energy savings with the SUM-760S15AMG’s exceptional efficiency rating.
- Full Power at a Wide Range of Output Currents: Deliver consistent performance across a broad range of output currents, ensuring optimal operation in different lighting scenarios.
- Low Inrush Current: Minimize power surges and protect your electrical system with the driver’s low inrush current feature.
- Versatile Dimming Controls: Enjoy precise lighting control with options like isolated 1-10V dimming, PWM, and multiple timers.
- Robust Surge Protection: Safeguard your investment against electrical surges with the SUM-760S15AMG’s high-level surge protection.
- Output Lumen Compensation: Maintain consistent light output even under fluctuating input voltage conditions.
- End-of-Life Indicator: Receive timely notifications when the driver nears its end-of-life, allowing for proactive maintenance.
- IP66/IP67 Rating: Ensure reliable operation in harsh environments with the driver’s high ingress protection rating.
- 5-Year Warranty: Benefit from our confidence in the SUM-760S15AMG’s quality and durability with a 5-year warranty.
Discription:

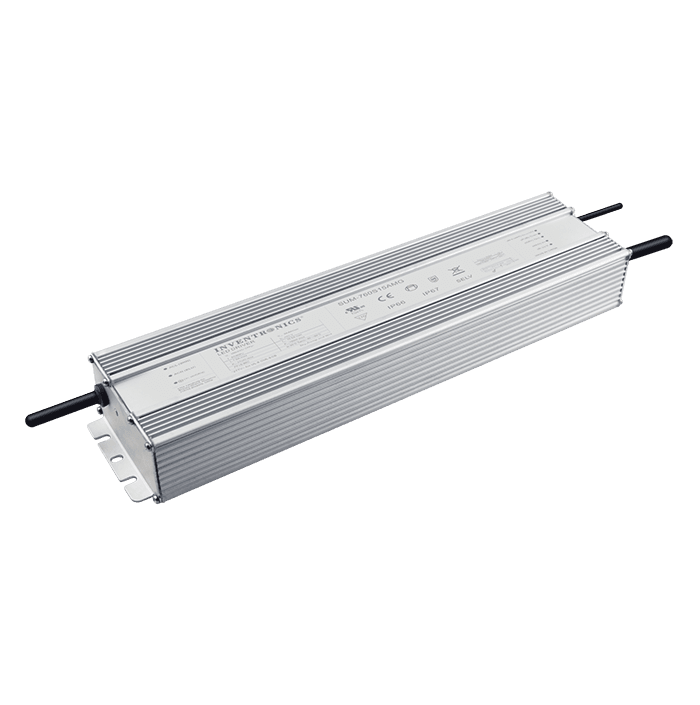

Designed to meet the rigorous demands of modern lighting systems, the SUM-760S15AMG LED driver offers an exceptional combination of efficiency, versatility, and reliability.
This powerful driver is ideal for a wide range of applications, including commercial, industrial, and outdoor lighting.
Detail model:
| Model | Adjustable Output Current Range | Full-Power Current Range(1) | Default Output Current | Input voltage | Output power | Output vol. | Effi. | QTY per carton (pcs) | carton size (cm) | GW per carton (kg) |
| SUM-760S15AMx | 0.26-3.5A | 2.6-3.5A | 3.5 A | 176-305Vac | 1200w | 171-462Vdc | 95.50% | 4 | 54*36*18 | 18 |
Notes: (1) Output current range with constant power at 760W.
(2) Measured at 100% load and 220Vac input (see below “General Specifications” for details).
(3) Certified input voltage range: UL, FCC 100-277Vac; otherwise: 100-240Vac
(4) SELV output
(5) x = G are UL Recognized, CE, etc. models; x = T are UL Recognized, CE (built-in-use), etc. models.
Ideal Applications:
1)high mast lights,
2) sports lights,
3) UV-LED lights,
4) aquaculture and horticulture lights etc.
Ready to experience the power of the SUM-760S15AMG? Contact us today to learn more about how this exceptional LED driver can elevate your lighting projects.
