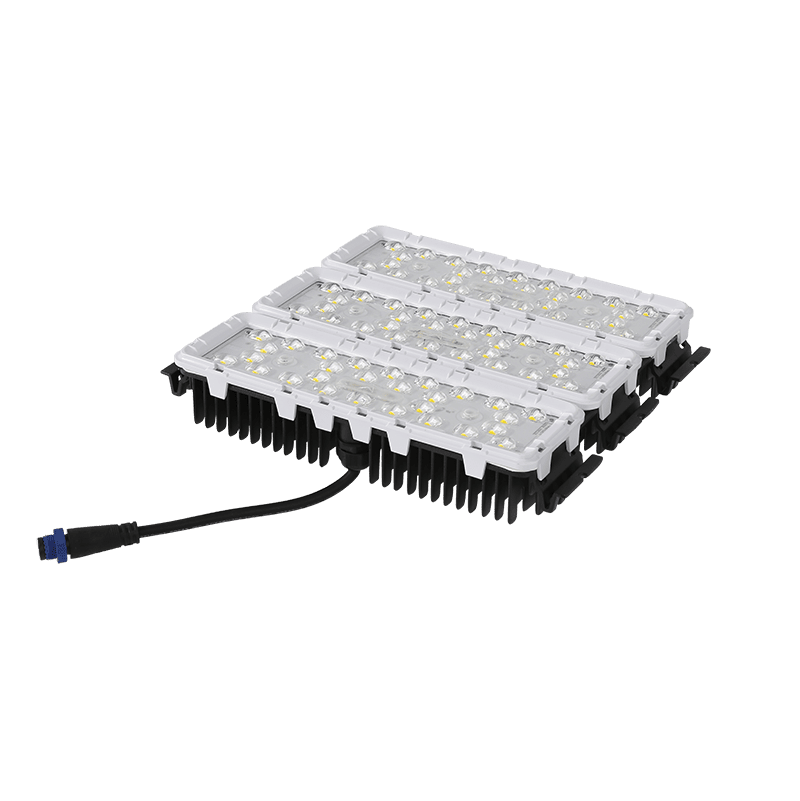

M17-D01C LED Module

The wattage range of M17-D01C IP68 LED module: 120W/150W/180W

M17-D01C LED Module adopts 84pcs customized 5050 LEDs with super high efficacy and long life time. The heat sink made of die cast aluminum has excellent heat dissipation effect. IP68 protection level and multiple light distributions meet different outdoor lighting applications.

Description

Features Of M17-D01C  LED Module:

  • Customized LEDs from a world-leading supplier;
  • Super long lifetime(Lumen maintenance);
  • Multiple lighting distributions available;
  • Wide applicability for complex situations;
  • High versatility apply for all sorts of lamps retrofit;

Applications Of M17-D01C LED Module:

  • Street lighting retrofit and application;
  • Factory lighting retrofit and application;
  • Tunnel lighting retrofit and application;
  • Sports lighting retrofit and application.

Additional information

Output Power

120, 150, 180

Color Temperature:

3000k, 4000k, 5000k, 5700k

Driving current (mA)

1000, 1200, 800

LED Light Source

5050

Lighting Distributions

25, 40, 60, 60*60, 70*30, 80*35, 80*50, 80*80, 90

Luminous Efficacy(lm/w):

140, 145, 150, 152, 158, 160, 163, 170, 175

IP rate:

IP68

Dimensions(mm)

275.2*235*52.1, 275.2*235*56
