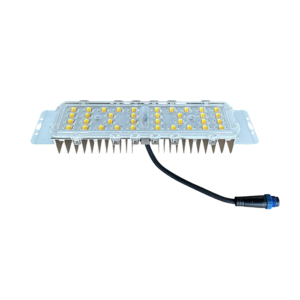

M32-D22 36pcs 7070 LED Module: Customizable, High-Brightness Solution for Dynamic Lighting

The 5050 LED Bi-Color Module is a high-power, dual-color LED module that is ideal for a variety of applications. The module uses 5050 LED chips, which are known for their high brightness and efficiency. The color temperature of the module can be controlled by the power supply, allowing you to create a variety of lighting effects. The module has a power range of 30-60 watts and an input voltage range of 46-50 volts.

Benefits:
The 5050 LED Bi-Color Module is a versatile and powerful lighting solution that can be used in a variety of applications.
The module is easy to install and use.
The module is energy efficient and has a long lifespan.

Category: Tags: , ,

Description

Features :

  • Refong 7070;
  • Customized LEDs from a world-leading supplier;
  • Super long lifetime(Lumen maintenance);
  • Multiple lighting distributions available;
  • Wide applicability for complex situations;
  • High versatility apply for all tunnel lamps retrofit.

Application:

  • Street lighting retrofit and application;
  • Tunnel lighting retrofit and application;
  • Sports lighting retrofit and application.
Model Power
(W)		 Drive Current (mA) Efficacy (lm/W) Initial Lumens (lm) DC Input Voltage (V) CCT
(K)		 CRI Beam Type Lighting Source






M32-D22

 20 350 220±8 4400



49-54
Type: 52v

 3000
4000
5000
5700		 >70 95*150°
90°



LUMILEDS
REFONG
30 500 215±8 6450
40 690 210±8 8400
50 850 205±8 10250
60 1050 190±8 12000
