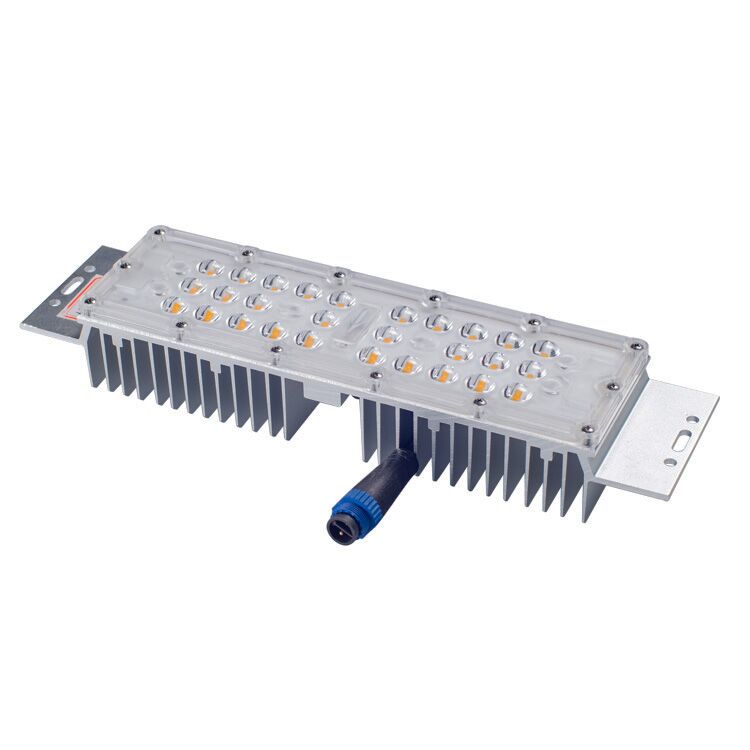

M5-D22 LED Module

The wattage range of M5-D22 IP68 LED module :40W/50W/60W

M5-D22 LED Module adopts 28pcs customized Lumileds LUXEON 5050 LED chips with super high efficiency and long life time. Excellent protection level IP68, high heat dissipation structure and perfect lighting performance. Various light distributions meet different outdoor lighting applications.

Category: Tag:

Description

Features Of M5-D22 LED Module:

  • Customized LEDs from a world-leading supplier;
  • Super long lifetime(Lumen maintenance);
  • Multiple lighting distributions available;
  • Wide applicability for complex situations;
  • High versatility apply for all sorts of lamps retrofit.

Applications Of M5-D22 LED Module:

  • Street lighting retrofit and application;
  • Factory lighting retrofit and application;
  • Tunnel lighting retrofit and application;
  • Sports lighting retrofit and application.



Additional information

Output Power

40, 50, 60
Color Temperature:

3000k, 4000k, 5000k, 5700k
Driving current (mA)

1050, 1250, 860
LED Light Source

5050
Lighting Distributions

80*150
Luminous Efficacy(lm/w):

150, 155, 160
IP rate:

IP66
Dimensions(mm)

298*70*47
