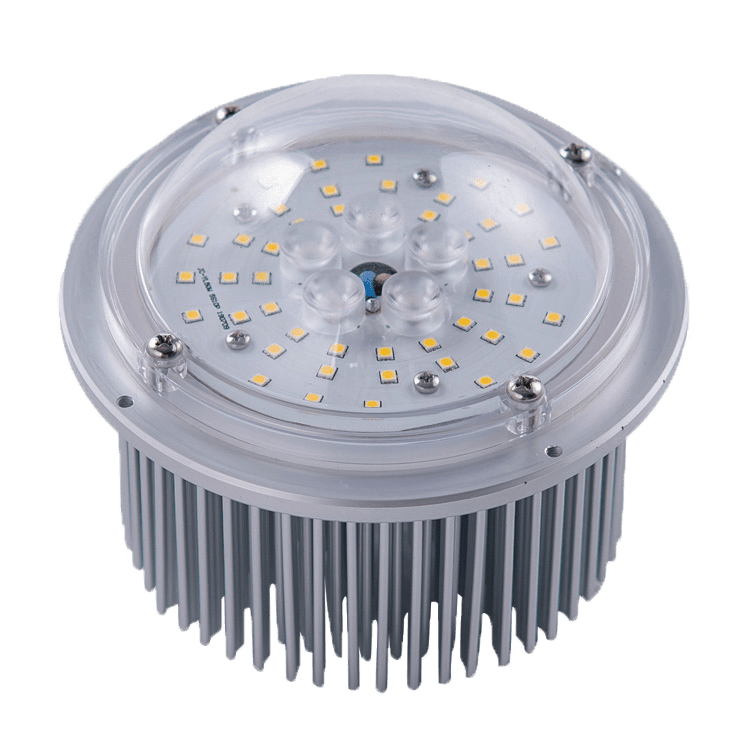

The wattage range of M19-D22 IP68 LED module : 20w/30w/40w/50w M19-D22 LED module uses CREE,OSRAM,Philips or Refong 3030 chips with super long life span and high luminous efficiency. It has unique round shape and good heat dissipation, especially designed for garden light or landscape lighting retrofit and application.
Features:
Lumileds Luxeon 3030;
Super long lifetime(Lumen maintenance);
Multiple lighting distributions available;
Wide applicability for complex situations;
High versatility apply for all sorts of lamps retrofit.
Applications :
Street lighting retrofit and application;
Garden lighting retrofit and application;
Tunnel lighting retrofit and application;
| Color Temperature: | 3000k, 4000k, 5000k, 5700k |
|---|---|
| Dimensions(mm) | Φ136* H 108.5mm |
| Driving current (mA) | 1200, 1500, 300, 600, 900 |
| IP rate: | IP68 |
| LED Light Source | 3030 |
| Lighting Distributions | 25, lambert |
| Luminous Efficacy(lm/w): | 110, 115, 120 |
| Output Power | 10, 20, 30, 40, 50 |
