Description
Product features
● Input voltage range: 90~305Vac;
● Constant current design;
● THD<10%;
● 2-in-1 dimmable: 1~10Vdc, PWM dimming;
● Output and Dimming Signal Isolating;
● Surge protection:4KV line-line, 6KV line-earth;
● Protections: Input OVP, Output OVP, SCP;
● IP67 design for indoor and outdoor applications;
● Suitable for dry / damp / wet locations;
● 5 years warranty.
Application:
Suitable for LED roadway lighting, plant lighting, industrial lighting, landscape lighting, etc.
Detail models with packing information:
| Model | Input voltage | Max Output Power (W) | Output Voltage Range (Vdc) | Output current (A) | Typical Efficiency | PF | QTY per carton (pcs) | carton size (cm) | GW per carton (kg) | |
| 120Vac | 230Vac | |||||||||

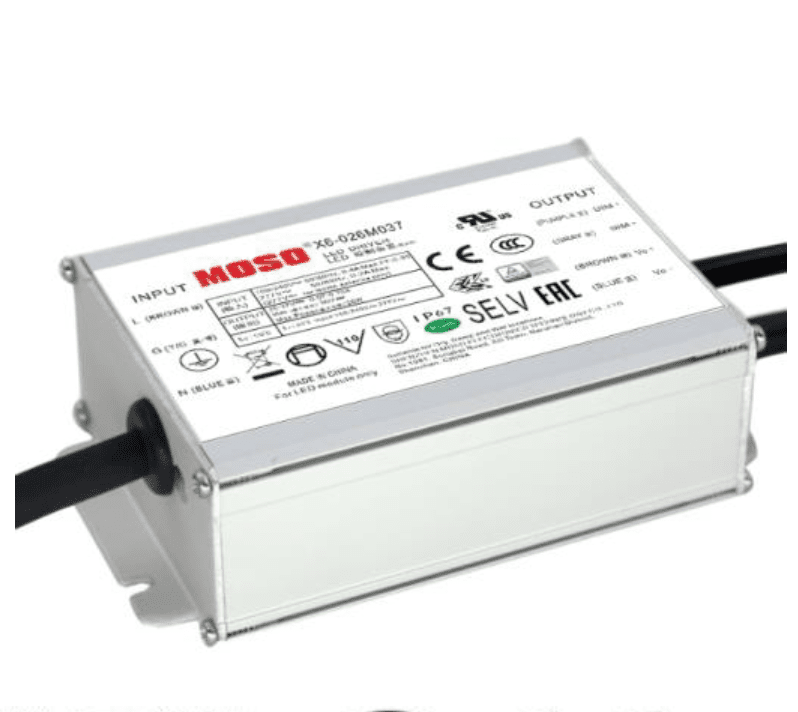

| X6-026M037 | 90-305Vac | 26w | 20-37 | 0.70 | 87% | 0.99 | 0.96 | 24 | 48*28*21 | 11 |
| X6-026M043 | 90-305Vac | 26w | 22-43 | 0.60 | 87% | 0.99 | 0.96 | 24 | 48*28*21 | 11 |
| X6-026M052 | 90-305Vac | 26w | 26-52 | 0.50 | 87% | 0.99 | 0.96 | 24 | 48*28*21 | 11 |
| X6-026M075 | 90-305Vac | 26w | 37-74 | 0.35 | 87% | 0.99 | 0.96 | 24 | 48*28*21 | 11 |
| X6-026V037 | 90-305Vac | 26w | 20-37 | 0.70 | 87% | 0.99 | 0.96 | 24 | 48*28*21 | 11 |
| X6-026V043 | 90-305Vac | 26w | 22-43 | 0.60 | 87% | 0.99 | 0.96 | 24 | 48*28*21 | 11 |
| X6-026V052 | 90-305Vac | 26w | 26-52 | 0.50 | 87% | 0.99 | 0.96 | 24 | 48*28*21 | 11 |
| X6-026V075 | 90-305Vac | 26w | 37-74 | 0.35 | 87% | 0.99 | 0.96 | 24 | 48*28*21 | 11 |
Notes:
[1]. M means dimmable and constant current output;
V means non-dimmable and output current adjusted by built-in potentiometer, 50%-100%Imax；
[2]. All specifications are measured at 25℃ ambient temperature, input voltage 230Vac, and the typical value tested by full load, if no specific note.
