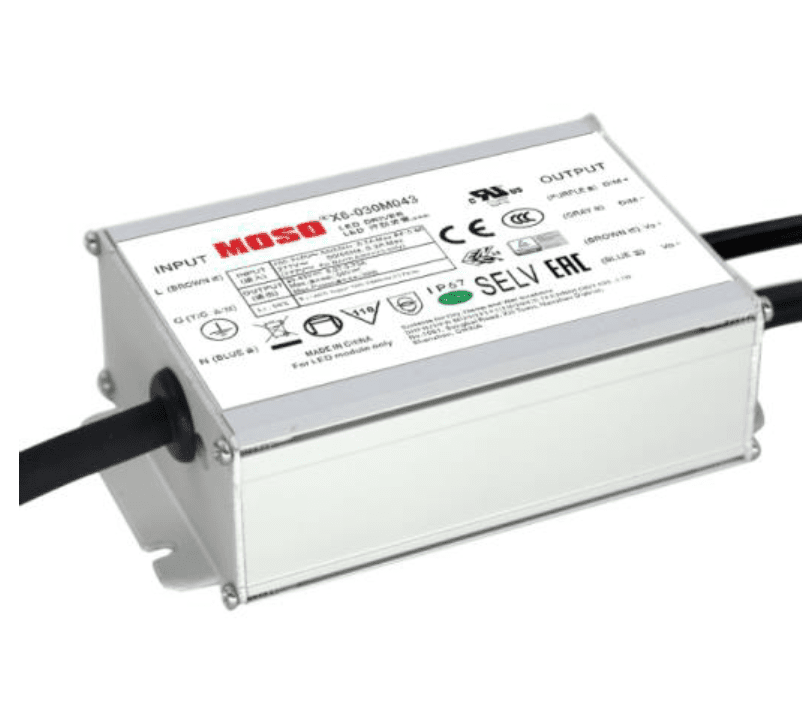

MOSO X6 Series – 30W Constant Current LED Driver

The X6-30W is a 30W, constant-current, IP67 LED driver that operates from 90-305Vac input with excellent power factor and low THD. It is created for industrial lights, tunnel and street lights. The high efficiency of these drivers and compact metal case enable them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, input over voltage, output over voltage, and short circuit.

Category: Tags: ,

Description

Product features

● Input voltage range: 90~305Vac;
● Constant current design;
● THD<10%;
● 2-in-1 dimmable: 1~10Vdc, PWM dimming;
● Output and Dimming Signal Isolating;
● Surge protection:4KV line-line, 6KV line-earth;
● Protections: Input OVP, Output OVP, SCP;
● IP67 design for indoor and outdoor applications;
● Suitable for dry / damp / wet locations;
● 5 years warranty.

Application:

Suitable for LED roadway lighting, plant lighting, industrial lighting, landscape lighting, etc.

Detail models with packing information:

Model Input voltage Max
Output Power
(W)		 Output
Voltage
Range
(Vdc)		 Output current (A) Typical Efficiency PF QTY per carton
(pcs)		 carton size
(cm)		 GW per carton
(kg)
120Vac 230Vac
X6-030M043 90-305Vac 30w 20-43 0.70 86% 0.99 0.96 24 48*28*21 11
X6-030M060 90-305Vac 30w 29-60 0.50 86% 0.99 0.96 24 48*28*21 11
X6-030M075 90-305Vac 30w 37-75 0.40 87% 0.99 0.96 24 48*28*21 11
X6-030V043 90-305Vac 30w 20-43 0.70 86% 0.99 0.96 24 48*28*21 11
X6-030V060 90-305Vac 30w 29-60 0.50 86% 0.99 0.96 24 48*28*21 11
X6-030V075 90-305Vac 30w 37-75 0.40 87% 0.99 0.96 24 48*28*21 11

Notes:
[1]. M means dimmable and constant current output;V means non-dimmable and output current adjusted by built-in potentiometer, 50%-100%Imax;
[2]. All specifications are measured at 25℃ ambient temperature, input voltage 230Vac, and the typical value tested by full load, if no specific note.
