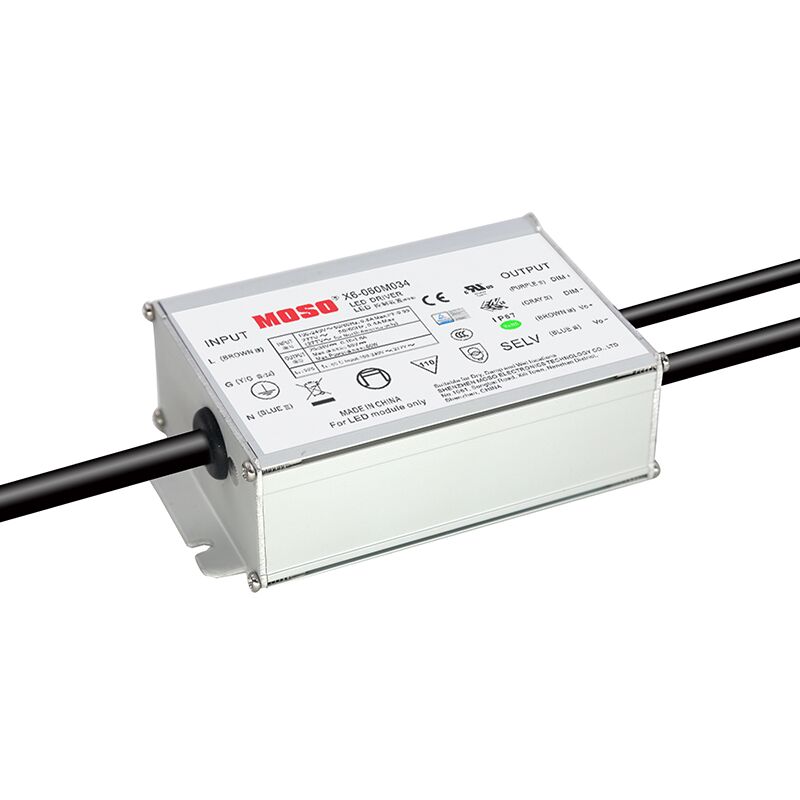

MOSO X6L Series 60W Constant Current LED Driver

The X6-60W is a 60W, constant-current, IP65 LED driver that operates from 90-305Vac input with excellent power factor and low THD. It is created for industrial lights, tunnel and street lights. The high efficiency of these drivers and compact metal case enable them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, and short circuit.

Category: Tags: ,

Description

Product features

  • Input voltage range: 90~305Vac.
  • Constant current design.
  • Output current adjustable by built-in potentiometer.
  • THD<10%.
  • 3-in-1 dimmable: 0~10Vdc, PWM, Resistance.
  • 0-10V reverse dimming is optional.
  • Output and Dimming signal isolating, dim to off.
  • Standby power consumption≤0.5W.
  • Surge protection: 4KV DM, 6KV CM.
  • Protections: Output OVP, SCP.
  • IP65 design for indoor and outdoor applications.
  • Suitable for dry / damp / wet locations.
  • 5 years warranty.

Application

    Suitable for LED roadway lighting, industrial lighting, landscape lighting, etc.

Detail models with packing information:

Model Input voltage Max
Output Power
(W)		 Output
Voltage
Range
(Vdc)		 Output Current Adjustable Range (A) Default Output Typical Efficiency PF QTY per carton
(pcs)		 carton size
(cm)		 GW per carton
(kg)
120Vac 230Vac
X6-060M052L 90-305Vac 60W 28-52 0.67-1.34 28-45V/1.34A 8 88% 0.99 0.96 12 43*36*15 7
X6-060V052L 90-305Vac 60W 28-52 0.67-1.34 28-45V/1.34A 8 88% 0.99 0.96 12 43*36*15 7

Notes:
[1]. V means non-dimmable, M, means 3-in-1 dimmable. model-A Indicates forward dimming；
model-B Indicates reverse dimming.
[2]. All specifications are measured at 25℃ ambient temperature, input voltage 230Vac, and the typical value tested by full
load, if no specific note.
