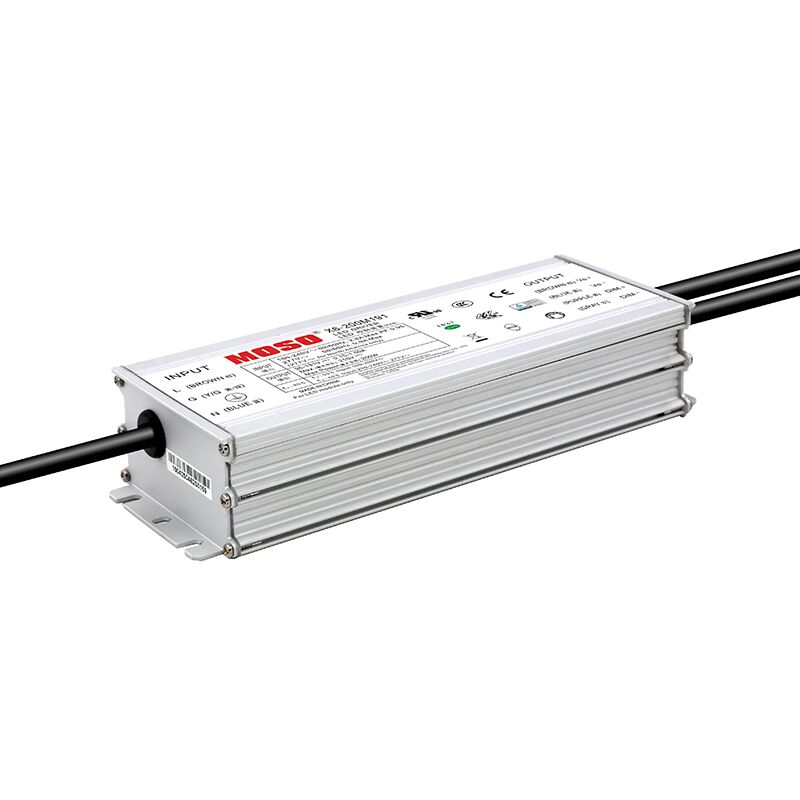

X6 200W Series LED Driver

The X6-200W series is 200W outdoor offline programmable LED driver that operates in constant current with high PF value and universal input voltage range 90~305Vac model. Offline Monitored by dimming cable connected with an USB kit programming device, the fully programmed drivers offer all dimming, dim-to-off, constant lumen output options and a wide range of output current in a single driver, which deliver maximum flexibility with customized operating settings and intelligent control options for lighting manufacturers, as one driver can be programmed for many different luminaire designs. X6 provides built-in timer dimming schedules further increasing the energy savings and CO2 reductions achieved with LED lighting. It also helps clients to improve the management of logistics and stock. The compact metal case and high efficiency enables the driver to operating with high reliability, and extending product lifetime. Overall protection is provided against lightening surge, output over voltage, short circuit, and over temperature, to ensure low failure rate.

Category: Tags: ,

Description

Product features

  • Input voltage: 90 ~ 305Vac;
  • Isolated constant power design;
  • Off-line programmable;
  • 12V/0.2A auxiliary output optional (for 320W);
  • 0-5V/0-10V/PWM/timer dimming, optional reverse dimming, Dim-to-off, CLO, work log function;
  • Surge protection: DM 5KV, CM 10KV;
  • All-around protection: output SCP, OVP, OTP;
  • Degree of waterproof: IP67;
  • Warranty: 5 years.

Application

    • Suitable for LED roadway lighting, plant lighting, industrial lighting, landscape lighting, etc.

Detail models with packing information:

Model Input voltage Max
Output Power
(W)		 Output
Voltage
Range
(Vdc)		 Full Power Output
Voltage
Range
(Vdc)		 Full Power Current Adjustable Range (A) Default
Output
Current Setting(A)		 Typical Efficiency PF QTY per carton
(pcs)		 carton size
(cm)		 GW per carton
(kg)
X6-200M041 90~305Vac 200 20-41 30-41 4.88-6.67 5.56 91% 0.97 10 50*37*16 10
X6-200V041 90~305Vac 200 20-41 30-41 4.88-6.67 5.56 91% 0.97 10 50*37*16 10
X6-200M062 90~305Vac 200 38-62 40-62 3.23-5.00 4.90 92% 0.97 10 50*37*16 10
X6-200V062 90~305Vac 200 38-62 40-62 3.23-5.00 4.90 92% 0.97 10 50*37*16 10
X6-200M191 90~305Vac 200 96-191 133-191 1.05-1.50 1.05 93% 0.97 10 50*37*16 10
X6-200V191 90~305Vac 200 96-191 133-191 1.05-1.50 1.05 93% 0.97 10 50*37*16 10
X6-200M286 90~305Vac 200 143-286 191-286 0.70-1.05 0.70 93% 0.97 10 50*37*16 10
X6-200V286 90~305Vac 200 143-286 191-286 0.70-1.05 0.70 93% 0.97 10 50*37*16 10

Notes:

[1].M means dimmable and offline programmable, The adjustable Iout range: 10%-100% Imax; V means non-dimmable and output current adjusted by built-in potentiometer.

[2]. Output current adjustable range with constant power at max output power;

[3]. All specifications are measured at 25℃ ambient temperature, input voltage 230Vac, and the typical value tested by full load, if no specific note.
