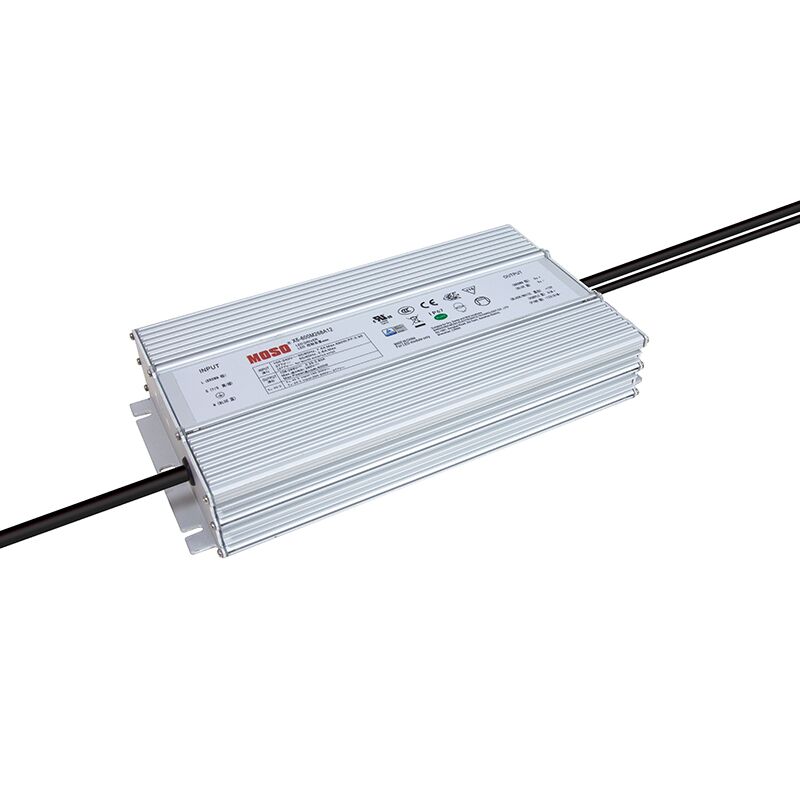

X6 600W Series LED Driver

The X6-600W series is 600W outdoor offline programmable LED driver that operates in constant current withhigh PF value and universal input voltage range 90~305Vac model. Offline Monitored by dimming cable connected with an USB kit programming device, the fully programmed drivers offer all dimming, dim-to-off,constant lumen output options and a wide range of output current in a single driver, which deliver maximum flexibility with customized operating settings and intelligent control options for lighting manufacturers, as one driver can be programmed for many different luminaires designs. X6 provides built-in timer dimming schedules further increasing the energy savings and CO2 reductions achieved with LED lighting. It also helps clients to improve the management of logistics and stock. The compact metal case and high efficiency enable sthe driver to operating with high reliability, and extending product lifetime. Overall protection is provided against lightening surge, output over voltage, short circuit, and over temperature, to ensure low failure rate.

Category: Tags: ,

Description

Product features

  • Universal input voltage / Full range: 90~305Vac;
  • Constant power design, output current programming adjustable;
  • offline programmable;
  • 3-in-1 dimmable: 0~10Vdc, PWM, Timer dimming. Dim-to-off;
  • Constant lumen output；
  • Output and Dimming Signal Isolating；
  • Surge protection: 6KV line-line, 10KV line-earth;
  • Protections: SCP, OVP, OTP;
  • IP67 design for indoor and outdoor applications;
  • Suitable for dry / damp / wet locations;
  • 7 years warrant

Application

    Suitable for LED roadway lighting, plant lighting, industrial lighting, landscape lighting, etc.

Detail models with packing information:

Model Number Max Output Power
(W)		 Output Voltage Range
(Vdc)		 Full Power Output Voltage Range
(Vdc)		 Full Power Current Adjustable
Range
(A)		 Default Output Current Setting(A) Typical Efficiency PF QTY per carton
(pcs)		 carton size
(cm)		 GW per carton
(kg)
X6-600M056A12P 600 27-56 48-56 10.7-12.50 11.20 94% 0.96 5 48*39*15 16
X6-600M134A12P 600 54-134 107-134 4.48-5.60 5.60 94.50% 0.96 5 48*39*15 16
X6-600M268A12P 600 108-268 214-268 2.24-2.80 2.80 94.50% 0.96 5 48*39*15 16
X6-600M428A12P 600 240-428 343-428 1.40-1.75 1.40 94% 0.96 5 48*39*15 16

Notes:
[1]. M means dimmable and offline programmable, the adjustable Iout range: 10%-100% Imax;
A12 means the driver with 12V/300mA auxiliary power supply. P means the driver is UL listed version, without P
means the driver is global version.
[2]. Output current adjustable range with constant power at max output power;
[3]. All specifications are measured at 25℃ ambient temperature, input voltage 230Vac, and the typical value tested by
full load, if no specific note.
